Pumping station Aquapump Small
Duo, Basic, STF 1300

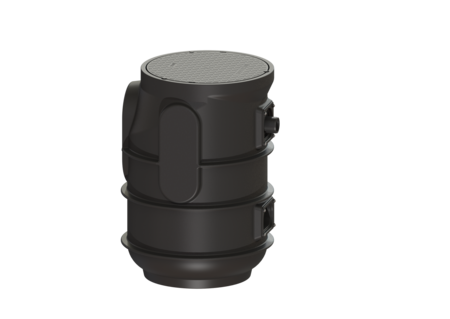

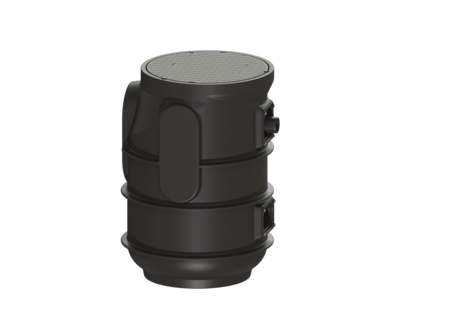

KESSEL Pumping station Aquapump Small, Duo, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), height 830 mm, aufstellung], with 2 submersible STF 1300 pumps, level measurement mechanical
- Including backflow preventer for the pressure pipe
- Including openings for inlet, ventilation and cable duct
- Easy tool-free maintenance
Item no. | 828711 |
---|---|
GTIN | 4026092084755 |
Price group | 20 |
Pumping station Aquapump Small Duo, Basic, STF 1300
The pumping station for wastewater with and without sewage is suitable for underground installations and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: duo pump Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: underground installation System type: Duo ATEX: no Dimensions Net weight: 41 kg Gross weight: 51 kg Length: 615 mm Width: 600 mm Height: 830 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 954 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 60 l Coverage features Type of cover: Round cover plate Colour of cover: black Locking: lockable Load class: up to 300 kg Pumping device Pump: STF 1300 Number of pumps: 2 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21 m³/h Max. pumping height: 10 m Speed: 2650 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Basic Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Float switch Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 6 A Type of fuse required (electrical protection): C 16 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- Control unit (schaltgeraet): Basic
- TÜV test mark (pruefzeichen): ID 1111241940
- Installation situation (einbausituation): underground installation
- Type of wastewater (abwasserart_de): for wastewater with or without sewage (in installation situations without ATEX requirements)
- Load class (belastungsklasse): up to 300 kg
- Pump (pumpe): STF 1300
- Impeller type (laufrad_typ): Multi-vane impeller
