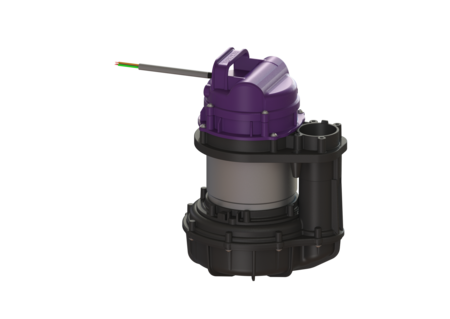

Replacement pump STF 1300

230 V, Tronic

Item no. 680820
GTIN 4026092085288
Price group 90

Replacement pump STF 1300 230 V, Tronic
General characteristics Cable length: 10 m Dimensions Net weight: 3,6 kg Gross weight: 11,05 kg Packaging dimension: width: 382 mm Packaging dimension: height: 241 mm Packaging dimension: length: 276 mm Pumping device Pump control: STF 1300 Number of pumps: 1 Connection type: coded plug Rated current: 6 A Length of mains cable for pump: 10 m Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2650 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug
