Lifting station Aqualift F Duo
Standard, SPF 1500-S1, shut-off valve

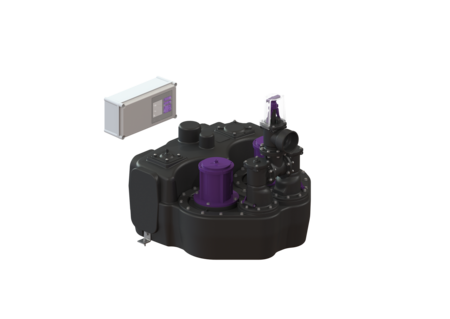

KESSEL Lifting station Aqualift F Duo, wastewater with sewage, pumping height 8 m, control unit Standard, height 788 mm, with 2 submersible SPF 1500-S1 pumps, pressure pipe connection horizontal, shut-off valve Shut-off valve made of polymer
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Control unit with self-diagnosis system
| Item no. | 11602 |
|---|---|
| GTIN | 4026092071007 |
| Price group | 20 |
Lifting station Aqualift F Duo Standard, SPF 1500-S1, shut-off valve
The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Dimensions Net weight: 58,83 kg Gross weight: 84 kg Length: 773 mm Width: 780 mm Height: 788 mm Packaging dimension: length: 773 mm Packaging dimension: width: 780 mm Packaging dimension: height: 788 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 590 mm Distance pipe bottom inlet to tank bottom: 245 mm Distance from centre of inlet pipe to tank bottom: 300 mm Inlet max. scoring (DN): 150 Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 Number of inlets: 2 Pumping volume: 50 l Tank volume: 120 l Pumping device Pump: SPF 1500-S1 Number of pumps: 2 Weight, pump: 27 kg Connection type: Direct connection Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 40 m³/h Max. pumping height: 8 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Rated current: 2,7 A Control Control unit: Standard Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe with pressure monitor Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes Log book function: yes Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Retrofit kit Alarm float switch, Aqualift F and F Duo | 28015 | Show |
 | Compressor set for air bubbling | 28048 | Show |
 | Flexible coupling DN 80, L: 200 mm | 28662 | Show |
 | Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show |
 | Shut-off valve DN 80, Polymer, horizontal | 28682 | Show |
 | Shut-off valve DN 100, Polymer, horizontal | 28683 | Show |
 | Shut-off valve DN 100, Polymer | 28698 | Show |
 | Shut-off valve DN 150, Polymer | 28699 | Show |
 | Flange joint DN 100, for polymer fittings | 28712 | Show |
 | Flange joint DN 80, for polymer fittings | 28713 | Show |
 | Flange adapter DN 80, for polymer fitting | 28714 | Show |
 | Shut-off valve DN 80, Polymer, vertical | 28715 | Show |
 | Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Show |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Pressure monitor Duo, with seal, up to 12/2009 | 28046 | Show |
 | Replacement set pump flange with screw set, flange gasket | 28051 | Show |
 | Pump drive SPF 1500 400 V, S1, 5 m cable | 28065 | Show |
 | Seal set DN 70, DN 100 | 28608 | Show |
| Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show |
 | Flap housing with pressure hose, DN 100 | 28677 | Show |
| Shut-off valve DN 100, Polymer, horizontal | 28683 | Show |
 | Battery 9 V block | 680034 | Show |
 | Cleaning cover screwed, 160x140 mm | 680044 | Show |
 | Seal Pump flange | 680045 | Show |
 | Attachment bracket with screws (2 ea.) | 680046 | Show |
| Screw set V2A, 14 each | 680047 | Show | |
 | Immersion pipe pressure monitor, Duo, 10m,up to 12/2009 | 680049 | Show |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Show |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Show |
 | Flap set Rolling ring, flap, flap holder | 680053 | Show |
 | Immersion pipe Duo, 5 m, from 01/2010 | 680056 | Show |
 | Flap housing for Duo systems, without shut-off valve | 680061 | Show |
 | Impeller SPF 1400/1500, Aqualift lifting stations | 680643 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- Pump (pumpe): SPF 1500-S1
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): Shut-off valve made of polymer
