Ecolift XL backwater lifting st.

Duo, 2 mech. flaps, SPF 1500-S3, Taper

8741053
8741053
PDF product data sheet

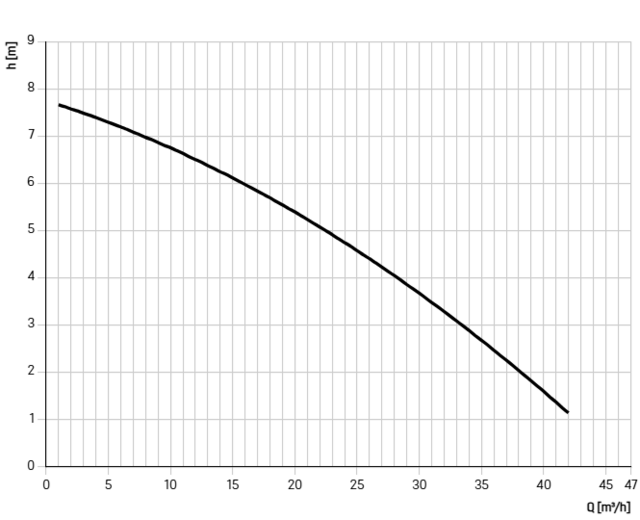

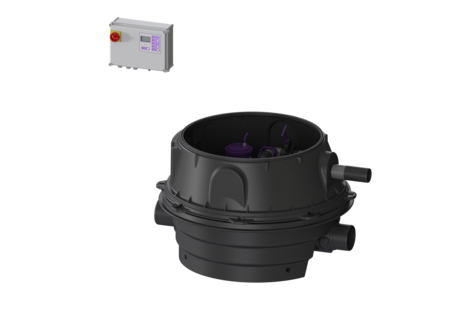

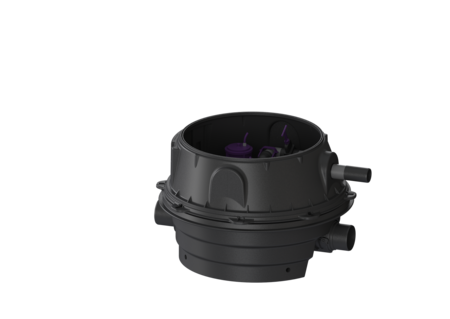

KESSEL Ecolift XL backwater lifting st., wastewater without sewage, duo pump, 2 mechanical backwater flaps, with 2 submersible SPF 1500-S3 pumps, alarm generator with optical probe, control unit Comfort Plus, Version with lowest installation height

    • Wastewater drainage without interruption, even if a power failure occurs, as long as there is no backwater
    • low pump use
    • minimised noise emissions
    Item no. 8741053
    GTIN 4026092070628
    Price group 60

    Ecolift XL backwater lifting st. Duo, 2 mech. flaps, SPF 1500-S3, Taper
    The backwater lifting station for non-faecal wastewater is equipped with one/two submersible pump/s, two mechanical closure systems and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. Quick-release closures enable the integrated components to be removed easily. Normally, draining takes place via the natural fall to the sewer. In case of backwater, the closure system is closed by the backflowing water. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version with lowest installation height Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 70 Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Mechanical backwater flaps: 2 General characteristics Colour: black Standard: ÖNORM B 2501 Type of wastewater: without sewage Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 2 Approval: Z-53.2-493 Dimensions Net weight: 139,34 kg Gross weight: 160,74 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 15 mm Length: 1245 mm Width: 1200 mm Height: 780 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 950 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Channel: continuous channel Venting connection (DN): 70 Distance pipe bottom outlet to tank bottom: 120 mm Distance pipe bottom inlet to tank bottom: 135 mm Distance from inlet pipe invert to top of tank: 645 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Pumping volume: 20 l Tank volume: 65 l Pumping device Pump: SPF 1500-S3 Number of pumps: 2 Weight, pump: 24 kg Connection type: Direct connection Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 28 m³/h Max. pumping height: 7,5 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): 3 x C 16 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Comfort Plus Motor protection switch: yes Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 16 A
      Title Item no.
    8740175 Upper section with cover plate LW 800, Class K 3, tileable 8740175 Show
    8740176 Upper section with cover plate LW 800, Cl K 3 with waterproof flange 8740176 Show
    8740177 Upper section with cover plate LW 800, Class A/L15 8740177 Show
    8740178 Upper section with cover plate LW 800, Class A/L15 w. waterproof flange 8740178 Show
    8740179 Upper section with cover plate LW 800, Class B 8740179 Show
    8740180 Upper section Square cover plate, LW 800, Class D 8740180 Show
    8740181 Upper section with cover plate LW 800, Cl K 3 8740181 Show
      Title Item no.
      Title Item no.
    20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
    28048 Compressor set for air bubbling 28048 Show
    28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
    97713 Installation set Thermostat, Hygrostat 97713 Show
    97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Show
    97715 Warning beacon for outdoor cabinet 97715 Show
    97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Show
    97723 Outdoor cabinet W: 785 mm,for installation control units 97723 Show
    97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Show
      Title Item no.
    28706 Splash guard set for optical probe 28706 Show
    28786 Control unit Comfort Plus Mono/Duo, 400 V, (2x)2,5-4,0 A 28786 Show
    680034 Battery 9 V block 680034 Show
    680052 Seal for SPF 1400 - SPF 4500 680052 Show
    680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
    680098 Pump drive SPF 1500 400 V, S3, 10 m cable 680098 Show
    680101 Flap holder for motor-driven and mechanical flap 680101 Show
    680380 One-handed closure DN 63 680380 Show
    680381 Backflow preventer left, with non-return flap 680381 Show
    680382 Backflow preventer right, with non-return flap 680382 Show
    680386 Valve key for shut-off valve DN 63 680386 Show
    680391 Ecolift XL lockable cover Outlet side 680391 Show
    680398 Pump flange Ecolift XL, incl. seal 680398 Show
    680399 Pump plate Ecolift XL 680399 Show
    680400 Pressure hose DN 63, L: 367 mm 680400 Show
    680401 Pressure pipe with shut-off valve left-hand version, angled 680401 Show
    680402 Pressure pipe with shut-off valve right-hand version, angled 680402 Show
    680403 Support rib for shut-off valve, slanted support 680403 Show
    680418 Seal set Ecolift XL 680418 Show
    680455 Spare part set, optical probe 10 m cable 680455 Show
    680827 Immersion pipe for Ecolift XL, 180 mm 680827 Show
    80041 Slide-in flap housing with mechanical flap, flap holder 80041 Show
    • Control unit (schaltgeraet): Comfort Plus
    • TÜV test mark (pruefzeichen): ID 1111241794
    • Type of wastewater (abwasserart_de): without sewage
    • Alarm sensor (alarmgeber): optical probe
    • Pump (pumpe): SPF 1500-S3
    • Type of level measurement (niveauerfassung_art): pneumatic
