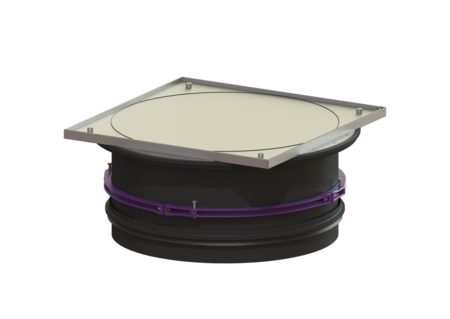

Upper section with cover plate
LW 800, Class K 3, tileable
Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges
| Item no. | 8740175 |
|---|---|
| GTIN | 4026092070413 |
| Price group | 60 |
Upper section with cover plate LW 800, Class K 3, tileable
Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges General characteristics Colour: black Material: Polymer Dimensions Net weight: 68,5 kg Gross weight: 85 kg Clear width (LW): 800 mm Vertical installation: 65 - 314 Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Packaging dimension: length: 1200 mm Coverage features Type: surface water resistant Surface: tileable Cover locking: screwed Load class: K 3 (EN 1253-1)
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Seal for chamber module LW 1000 | 680375 | Show |
 | Clamping ring for upper sections d: 800 mm | 680568 | Show |
| Screw set 4 countersunk screws, M10x35, A4 | 680593 | Show | |
 | Seal for cover plate, d: 840 mm | 680653 | Show |
| Screw set Set of 24, for upper section, K80x22, A2 | 680654 | Show | |
 | Seal for upper section, d: 870 mm | 680655 | Show |
 | Cover plate Frame, K 3, 24 screws, seal | 680656 | Show |
 | Cover plate K 3, incl. 4 screws, seal | 680657 | Show |
| Manuals | |
|---|---|
| CAD Data |
- Material (material):
Polymer
- (abdeckungsart):
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Surface (oberflaeche): tileable
