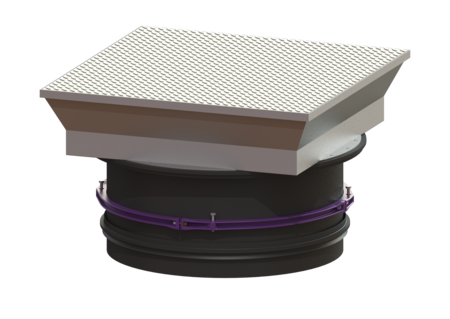

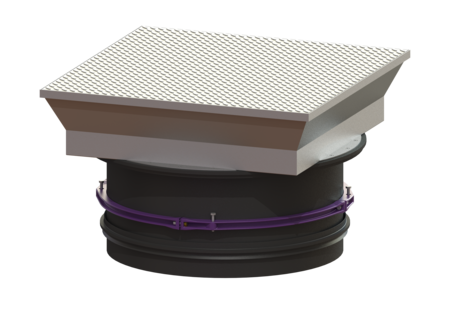

Upper section with rectangular cover plate

LW 800, Class D

PDF product data sheet

Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a drive-over, flush-to-ground cover for setting in concrete, with inner joints, all-round frost- and weather-proof seal, gas spring as an opening aid incl. self-effective arresting device. An all-round concrete ring must be prepared on site. Suitable for taper with 800 mm access.

Item no. 8740180
GTIN 4026092070468
Discount group 3

Upper section with rectangular cover plate LW 800, Class D

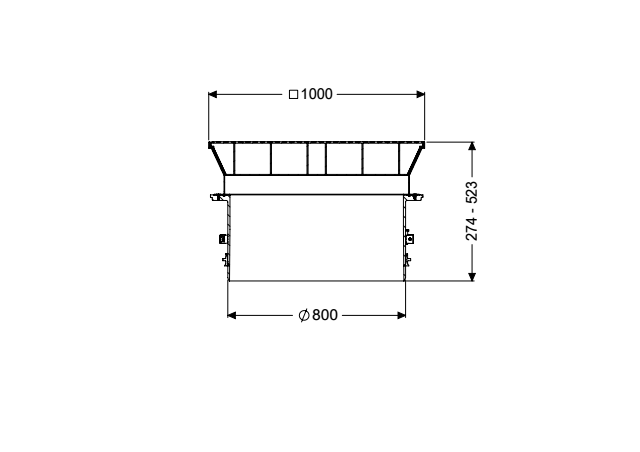

Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a drive-over, flush-to-ground cover for setting in concrete, with inner joints, all-round frost- and weather-proof seal, gas spring as an opening aid incl. self-effective arresting device. An all-round concrete ring must be prepared on site. Suitable for taper with 800 mm access. General characteristics: Material: Polymer, Stainless steel Colour: black Dimensions: Clear width (LW): 800 Adjustment range: 274 - 523 mm Coverage features: Load class: D 400 (EN 124) Surface: Stainless steel Locking: screwed
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Adjustment range (ATTR-108_VB): 274  MMT
  • Load class (ATTR-A2B): D 400 (EN 124)
  • Locking (ATTR-A2D): screwed
  • Surface (ATTR-A2F): Stainless steel
  • Material (ATTR-101): Polymer
  • Brand (M-ATTR-001): KESSEL
  • Colour (ATTR-102): black
  • Clear width (LW) (ATTR-167): 800
  • Net weight (ATTR-A3A): 152.4  KGM
  • Gross weight (ATTR-A3B): 170.1  KGM
  • Volume (ATTR-320): 0.6  MTQ
  • Packaging dimension: length (ATTR-325): 1,200  MMT
  • Packaging dimension: width (ATTR-326): 1,200  MMT
  • Packaging dimension: height (ATTR-327): 2,200  MMT
  • Dimensions (ATTR-323): 1200X1200X2200MM
  • Number of packages (ATTR-321): 0
