Upper section with cover plate

LW 800, Class A/L15 w. waterproof flange

8740178
8740178

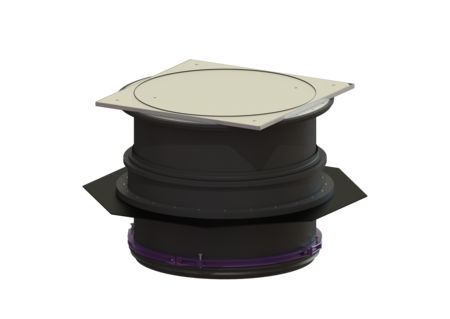

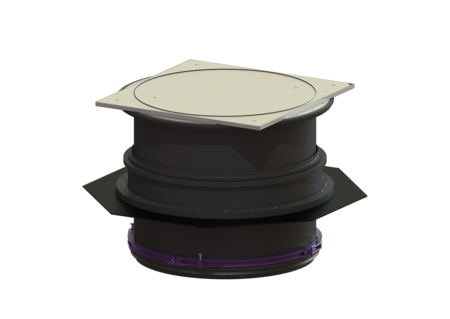

KESSEL Upper section with cover plate, load class A 15 / L 15, volume 891,12 dm³, floor slab installation, surface Stainless steel, ribbed, adjustment range 267 - 516

Item no. 8740178
GTIN 4026092070444
Price group 60

    Upper section with cover plate LW 800, Class A/L15 w. waterproof flange

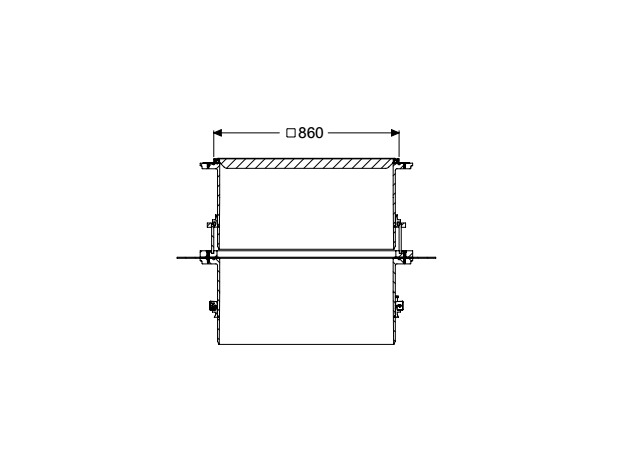

    Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges Variant Waterproof flange: yes General characteristics Colour: black Material: Polymer Installation situation: floor slab installation Dimensions Net weight: 94,5 kg Gross weight: 111 kg Clear width (LW): 800 mm Adjustment range: 267 - 516 Packaging dimension: length: 2400 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Coverage features Type: surface water resistant Type of cover: Rectangular cover plate Width of cover: 860 mm Length of cover: 860 mm Surface: Stainless steel, ribbed Locking: screwed Load class: A 15 (EN 124) / L 15 (EN 1253-1)
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680375 Seal for chamber module LW 1000 680375 Show
    680378 WU extension section for chamber module 680378 Show
    680568 Clamping ring for upper sections d: 800 mm 680568 Show
    680653 Seal for cover plate, d: 840 mm 680653 Show
    680654 Screw set Set of 24, for upper section, K80x22, A2 680654 Show
    680655 Seal for upper section, d: 870 mm 680655 Show
    680658 Cover plate L 15, incl. 30 screws, Seal 680658 Show
    680661 Screw set 2 countersunk screws, M8x12, A4 680661 Show
    680662 Cover plate L 15, incl. 6 screws, Seal 680662 Show
    680663 Screw set 4 countersunk screws, M10x20, A4 680663 Show
    • Material (material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of cover (abdeckungsart): Rectangular cover plate
    • Load class (belastungsklasse): A 15 (EN 124) / L 15 (EN 1253-1)
    • Surface (oberflaeche): Stainless steel, ribbed
