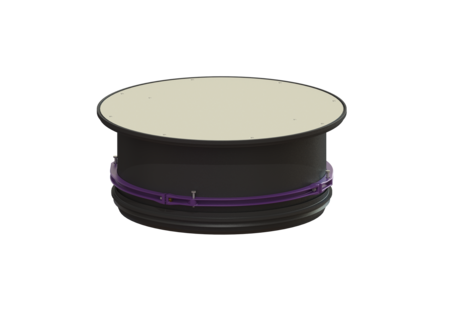

Upper section with cover plate

LW 800, Class K 3

PDF product data sheet

Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges

Item no. 8740181
GTIN 4026092075609
Discount group 3

Upper section with cover plate LW 800, Class K 3

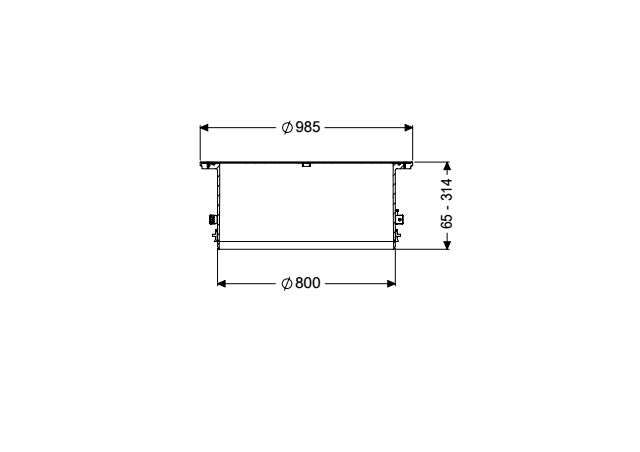

Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges General characteristics: Material: Polymer, Stainless steel Colour: black Dimensions: Clear width (LW): 800 Adjustment range: 65 - 314 mm Coverage features: Load class: K 3 (EN 1253-1) Surface: Stainless steel, ribbed Locking: screwed Type: surface water resistant
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
T-Chamber gasket 680375
Clamping ring for upper section 800 680568
Seal upper section d: 870 mm 680655
Cover round, K3, joint, 10 screws 680659
Cover plate round, K 3, incl. 2 screws 680660
Screw set, 2 pc,countersunk screws M8x12 680661
Screw set 8 PT-screws K80x22 680664
  • Type (ATTR-106): surface water resistant
  • Adjustment range (ATTR-108_VB): 65  MMT
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): screwed
  • Surface (ATTR-A2F): Stainless steel, ribbed
  • Diameter (ATTR-A107): 986  MMT
  • Material (ATTR-101): Polymer
  • Brand (M-ATTR-001): KESSEL
  • Colour (ATTR-102): black
  • Clear width (LW) (ATTR-167): 800
  • Net weight (ATTR-A3A): 46  KGM
  • Gross weight (ATTR-A3B): 62  KGM
  • Volume (ATTR-320): 0.2  MTQ
  • Packaging dimension: length (ATTR-325): 1,200  MMT
  • Packaging dimension: width (ATTR-326): 1,200  MMT
  • Packaging dimension: height (ATTR-327): 130  MMT
  • Dimensions (ATTR-323): 1200X1200X130MM
  • Number of packages (ATTR-321): 0
