Ecolift XL backwater lifting st.

Duo, 2 motor flaps, SPF 1400-S3, Taper

8741068
8741068

KESSEL Ecolift XL backwater lifting st., wastewater for wastewater with and without sewage, underground installation, duo pump, with 2 submersible SPF 1400 pumps, operating mode S3 - 50 %, alarm generator with optical probe

  • Wastewater drainage without interruption, even if a power failure occurs, as long as there is no backwater
  • low pump use
  • minimised noise emissions
Item no. 8741068
GTIN 4026092070772
Price group 60

Ecolift XL backwater lifting st. Duo, 2 motor flaps, SPF 1400-S3, Taper

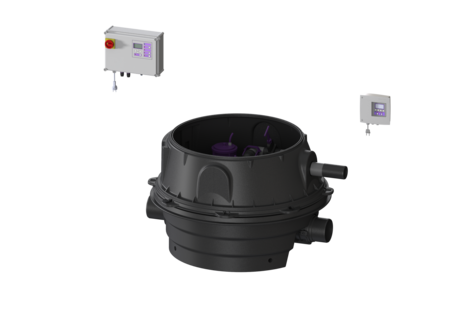

The backwater lifting station for faecal and non-faecal wastewater is equipped with two submersible pumps, two motor-driven closure systems and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. Quick-release closures enable the integrated components to be removed easily. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the closure systems to close automatically and there is no longer free passage to the sewer. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. A redundant control unit also provides additional safety. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version with lowest installation height Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 70 Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Motor-driven backwater flaps: 2 General characteristics Colour: black Standard: ÖNORM B 2501 Type of wastewater: for wastewater with and without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 6 Approval: Z-53.2-493 ATEX: no Dimensions Net weight: 139,43 kg Gross weight: 164,05 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 15 mm Length: 1379 mm Width: 1200 mm Height: 785 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 950 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Channel: continuous channel Venting connection (DN): 70 Distance pipe bottom outlet to tank bottom: 120 mm Distance pipe bottom inlet to tank bottom: 135 mm Distance from inlet pipe invert to top of tank: 645 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Pumping volume: 20 l Tank volume: 65 l Pumping device Pump: SPF 1400 Number of pumps: 2 Weight, pump: 25 kg Connection type: coded plug Rated current: 7,3 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 28 m³/h Max. pumping height: 7,5 m Speed: 1370 U/min Power P1: 1,6 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Comfort Plus with redundancy Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,6 m Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 7,3 A Type of fuse required (electrical protection): C 16 A
  Title Item no.
8740175 Upper section with cover plate LW 800, Class K 3, tileable 8740175 Show
8740176 Upper section with cover plate LW 800, Cl K 3 with waterproof flange 8740176 Show
8740177 Upper section with cover plate LW 800, Class A/L15 8740177 Show
8740178 Upper section with cover plate LW 800, Class A/L15 w. waterproof flange 8740178 Show
8740179 Upper section with cover plate LW 800, Class B 8740179 Show
8740180 Upper section Square cover plate, LW 800, Class D 8740180 Show
8740181 Upper section with cover plate LW 800, Cl K 3 8740181 Show
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28048 Compressor set for air bubbling 28048 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
80889 Cable accessories Extension for probe 80889 Show
80890 Cable accessories Extension for motor 80890 Show
80891 Cable accessories Extension for pump 80891 Show
97713 Installation set Thermostat, Hygrostat 97713 Show
97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Show
97715 Warning beacon for outdoor cabinet 97715 Show
97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Show
Outdoor cabinet W: 785 mm,for installation control units 97723 Show
97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Show
  Title Item no.
28706 Splash guard set for optical probe 28706 Show
28790 Control unit Comfort Plus Mono/Duo, 230 V, 6,3-10 A 28790 Show
28791 Control unit Ecolift XL type 6 for redundant valve 28791 Show
680034 Battery 9 V block 680034 Show
680052 Seal for SPF 1400 - SPF 4500 680052 Show
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
680101 Flap holder for motor-driven and mechanical flap 680101 Show
680218 Pump drive SPF 1400 230 V, S3, 10 m cable, with capacitor 680218 Show
680379 Height adapter for Ecolift XL optical probe 680379 Show
680380 One-handed closure DN 63 680380 Show
680381 Backflow preventer left, with non-return flap 680381 Show
680382 Backflow preventer right, with non-return flap 680382 Show
680386 Valve key for shut-off valve DN 63 680386 Show
680390 Ecolift XL lockable cover Inlet side 680390 Show
680391 Ecolift XL lockable cover Outlet side 680391 Show
680398 Pump flange Ecolift XL, incl. seal 680398 Show
680399 Pump plate Ecolift XL 680399 Show
680400 Pressure hose DN 63, L: 367 mm 680400 Show
680401 Pressure pipe with shut-off valve left-hand version, angled 680401 Show
680402 Pressure pipe with shut-off valve right-hand version, angled 680402 Show
680403 Support rib for shut-off valve, slanted support 680403 Show
680418 Seal set Ecolift XL 680418 Show
680452 Drive motor for clamping on, 10 m cable 680452 Show
680455 Spare part set, optical probe 10 m cable 680455 Show
680827 Immersion pipe for Ecolift XL, 180 mm 680827 Show
80038 Backwater flap motor-driven, with flap holder 80038 Show
80039 Slide-in flap housing for motorised flap with flap holder 80039 Show
  • Type of wastewater (abwasserart_de): for wastewater with and without sewage
  • Control unit (schaltgeraet): Comfort Plus with redundancy
  • TÜV test mark (pruefzeichen): ID 1111241794
  • Installation situation (einbausituation): underground installation
  • (nennweite):

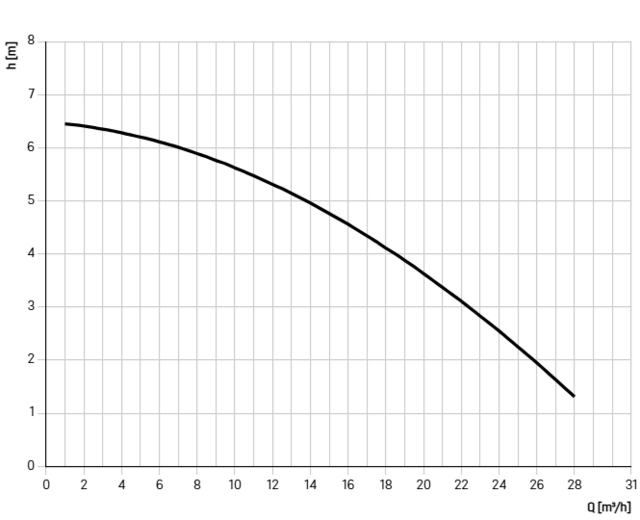

  • Pump (pumpe): SPF 1400
  • Operating voltage (betriebsspannung): 230  V
