Slot cover, 304 SST, 130 x 130 mm, K3

48165
48165

KESSEL Upper section, frame material ABS, length 130 mm, width 130 mm, type of cover Slotted cover, locking, design cover, Cover Stainless steel 14301, waterproofing layer upper section by

  • Multiple combinations with suitable drain bodies
Item no. 48165
GTIN 4026092034224
Price group 10

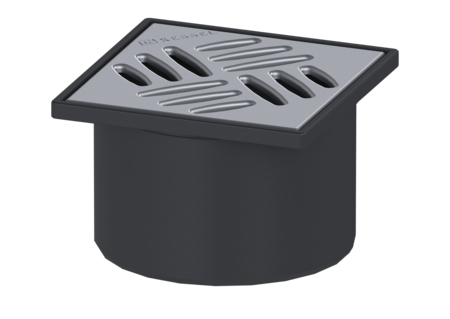

Upper section Slot cover, 304 SST, 130 x 130 mm, K3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,27 kg Gross weight: 0,3 kg Height: 85 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 85 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 9 mm Surface: Polished SST Frame material: ABS Load class: K 3 (EN 1253-1) Rim width: 130 mm Rim length: 130 mm Shape of upper section: square Upper section material: ABS
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680243 Slotted cover 120x120 mm, stainless steel 680243 Show
CAD Data
Test Reports and Certificates
  • Cover material (abdeckung_material): Stainless steel 14301
  • TÜV test mark (pruefzeichen): ID 1111243495
  • Frame material (rahmen_material): ABS
  • Upper section material (material_aufsatzstueck): ABS
