Extension section

H: 140 mm, with glued flange

PDF product data sheet

Extension section with glued flange and mating flange for clamping polymer and elastomer membranes up to 3 mm thick. For cold bitumen seals or shallow bed waterproofing layer.

Item no. 48403
GTIN 4026092077047
Discount group 1

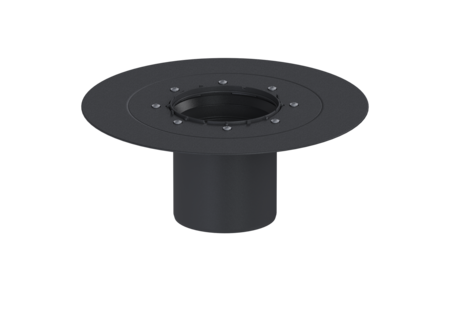

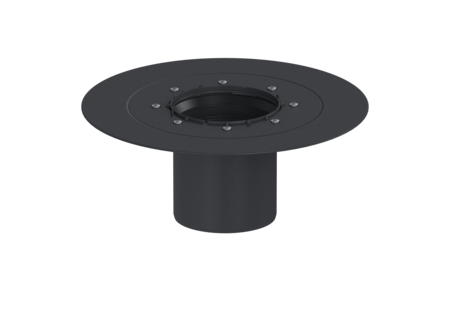

Extension section H: 140 mm, with glued flange
Extension section with glued flange and mating flange for clamping polymer and elastomer membranes up to 3 mm thick. For cold bitumen seals or shallow bed waterproofing layer. Version: Seal: Lip seal General characteristics: Material: Polymer Colour: grey Dimensions: Diameter: 348 mm Clear width (LW): 125
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Seal (ATTR-114): Lip seal
  • Material (ATTR-101): Polymer
  • Brand (M-ATTR-001): KESSEL
  • Colour (ATTR-102): grey
  • Clear width (LW) (ATTR-167): 125
  • Advantages text (M-ATTR-007): For extending the upper section for high floor build-up
  • Net weight (ATTR-A3A): 1.0  KGM
  • Gross weight (ATTR-A3B): 1.3  KGM
  • Diameter (ATTR-107): 348  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 390  MMT
  • Packaging dimension: width (ATTR-326): 190  MMT
  • Packaging dimension: height (ATTR-327): 310  MMT
  • Dimensions (ATTR-323): 390X190X310MM
  • Number of packages (ATTR-321): 0
