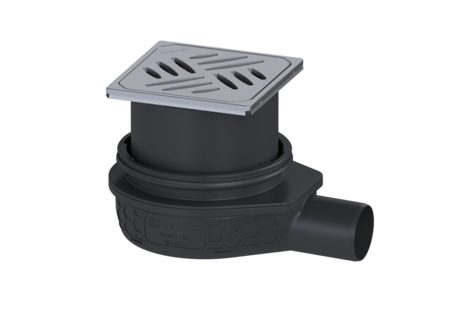

The Ultraflat 79 floor drain

DN 50, Des grating

KESSEL The Ultraflat 79 floor drain, cover length 120 mm, socket lateral, nominal size (DN) 50, volume 10,98 dm³, type of cover Design cover, locking unlocked, design cover Kessel, Sealing water height 50 mm

  • Low installation depth
  • Scientifically confirmed sound insulation effect
  • different design covers
Item no. 44700.62
GTIN 4026092080924
Price group 10

    The Ultraflat 79 floor drain DN 50, Des grating
    The Ultraflat 79 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 Seepage opening: optional Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Vertical adjustment: 88 - 139 mm Net weight: 0,85 kg Gross weight: 1,01 kg Vertical adjustment: vertically adjustable upper section Length: 227 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: unlocked Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Show
    Installation aid set for The Ultraflat 54 & 79 drain body 44702 Show
    Clip flange The Ultraflat 79, Ecoguss, Practicus 44703 Show
    Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Odour trap Multistop, System 125 48500 Show
    Odour trap Megastop 48550 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    Upper section Kessel design cover, 304 SST, L 15 48225 Show
    Design cover KESSEL, stainless steel 680227 Show
    Design cover Oval, stainless steel 680228 Show
    Design cover Cross, stainless steel 680229 Show
    Design cover Parade, stainless steel 680230 Show
    Design cover Festival, stainless steel 680231 Show
    Design cover Spot, stainless steel 680232 Show
    Design cover Slot, stainless steel 680233 Show
    Design cover Sticks, stainless steel 680234 Show
    Odour trap for The Ultraflat 79 680696 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Design cover
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): unlocked
    • Odour trap (geruchsverschluss): included
