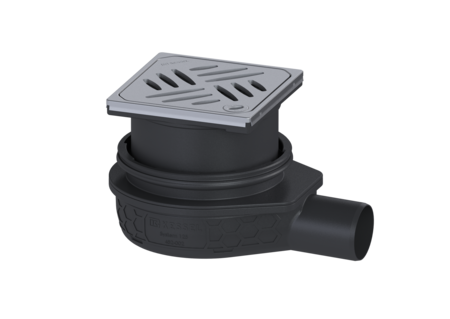

The Ultraflat 79 floor drain
DN 50, Des grating, L&L, Megastop
KESSEL The Ultraflat 79 floor drain, cover length 120 mm, socket lateral, nominal size (DN) 50, volume 10,98 dm³, type of cover Design cover, locking Lock & Lift, design cover Kessel, Sealing water height 10 mm, Backflow protection up to 0.1 bar
- Low installation depth
- Scientifically confirmed sound insulation effect
- different design covers
Item no. | 44700.66 |
---|---|
GTIN | 4026092081105 |
Price group | 10 |
The Ultraflat 79 floor drain DN 50, Des grating, L&L, Megastop
The Ultraflat 79 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 Seepage opening: optional Backflow protection: up to 0.1 bar Sealing water height: 10 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: Megastop Dimensions Vertical adjustment: 95 - 145 mm Net weight: 0,87 kg Gross weight: 1,03 kg Type of height adjustability: vertically adjustable upper section Length: 227 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Adapter DN 50/40 | 27118 | Show | |
Installation aid set for The Ultraflat 54 & 79 drain body | 44702 | Show | |
Clip flange The Ultraflat 79, Ecoguss, Practicus | 44703 | Show | |
Hair filter for The Ultraflat 54 & 79, System 125 | 44704 | Show | |
Extension section H: 140 mm, with glued flange | 48403 | Show | |
Extension section H: 147 mm, with pressure sealing flange | 48404 | Show | |
Odour trap Multistop, System 125 | 48500 | Show | |
Odour trap Megastop | 48550 | Show | |
Extension section H: 120 mm, with glued flange | 48900 | Show | |
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
Odour trap for The Ultraflat 79 | 680696 | Show |
Title | Item no. | ||
---|---|---|---|
Hair filter for The Ultraflat 54 & 79, System 125 | 44704 | Show | |
Upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48201 | Show | |
Odour trap Megastop | 48550 | Show | |
Design cover Oval, Lock & Lift | 680225 | Show | |
Design cover KESSEL, Lock & Lift | 680226 | Show | |
Design cover Cross, Lock & Lift | 680235 | Show | |
Design cover Parade, Lock & Lift | 680236 | Show | |
Design cover Festival, Lock & Lift | 680237 | Show | |
Design cover Spot, Lock & Lift | 680238 | Show | |
Design cover Slot, Lock & Lift | 680239 | Show | |
Design cover Sticks, Lock & Lift | 680240 | Show | |
Release key for Lock & Lift | 680702 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper): ABS
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): lateral
