Upper section

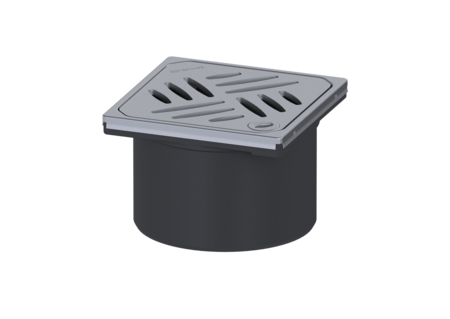

Kessel design cover, 304 SST, Lock & Lift, L15

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.

Item no. 48201
GTIN 4026092028766
Discount group 1

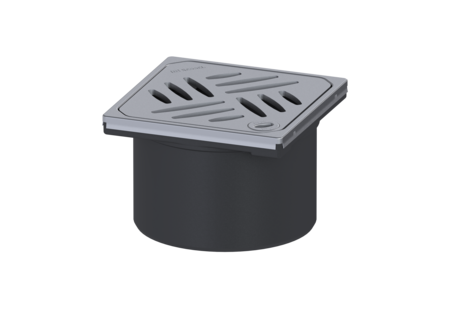

Upper section Kessel design cover, 304 SST, Lock & Lift, L15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Version: System: 125 Dimensions: Height: 90 mm Coverage features: Type of cover: Design cover Grating design: Kessel Cover material: 304 stainless steel Colour of cover: silver Load class: L 15 (EN 1253-1) Height: 16 mm Surface: ground Locking: Lock & Lift Grating: Rim length: 132 mm Rim width: 132 mm Rim material: 304 stainless steel Shape of upper section: square Upper section material: ABS
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Release key for Lock & Lift 680702
  • Complete article (ATTR-254): no
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): square
  • Type of drainage (ATTR-263): open channel
  • TÜV test mark (ATTR-376): ID 1111243495
  • Advantages text (M-ATTR-007): For particular design standards
  • Country of origin (ATTR-322): DE
  • Rim material (ATTR-111): 304 stainless steel
  • Rim length (ATTR-111B): 132  MMT
  • Rim width (ATTR-111C): 132  MMT
  • System (ATTR-244): 125
  • Height (ATTR-A6C): 90  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 215  MMT
  • Packaging dimension: width (ATTR-326): 190  MMT
  • Packaging dimension: height (ATTR-327): 120  MMT
  • Dimensions (ATTR-323): 215X190X120MM
  • Number of packages (ATTR-321): 0
  • Grating design (ATTR-112): Kessel
  • Type of cover (ATTR-A21): Design cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): 304 stainless steel
  • Surface (ATTR-A2F): ground
  • Height (ATTR-A2P): 16  MMT
  • - (ATTR-371):
  • Net weight (ATTR-A3A): 0.6  KGM
  • Gross weight (ATTR-A3B): 0.6  KGM
  • Upper section material (ATTR-231): ABS
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
