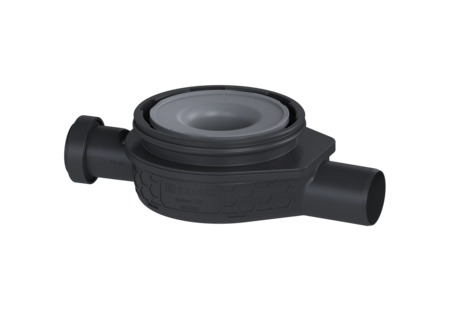

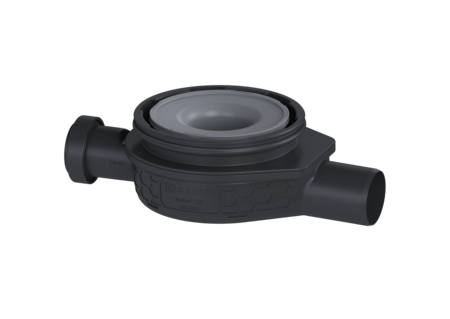

The Ultraflat 79 drain body

DN 50, horiz. Inlet DN 40, OT 50 mm

KESSEL The Ultraflat 79 drain body, length 280 mm, locking, design cover, Sealing water height 50 mm, waterproofing layer drain body by

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44701
GTIN 4026092080740
Price group 10

The Ultraflat 79 drain body DN 50, horiz. Inlet DN 40, OT 50 mm
The drain body for floor drains. The Ultraflat 79 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Variant System: 125 Seepage opening: optional Position of lateral connection: Type II Sealing water height: 50 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Net weight: 0,3 kg Gross weight: 0,35 kg Length: 280 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 280,4 mm Packaging dimension: width: 163 mm Packaging dimension: height: 84,9 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 mm Number of inlets: 1 Material of drain body: ABS
  Title Item no.
Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Show
Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Show
Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Show
Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Show
Variofix upper section Slotted cover, 316 SST, K 3 48206 Show
Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Show
Upper section tileable, 304 SST, K 3 48211 Show
Upper section Slot design cover, 304 SST, K 3 48218 Show
Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Show
Upper section Spot design cover, 304 SST, K 3 48220 Show
Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Show
Upper section Kessel design cover, 304 SST, L 15 48225 Show
Upper section Oval design cover, 304 SST, L 15 48226 Show
Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Show
Upper section Oval design cover, 316 SST, L 15 48228 Show
Variofix upper section Design cover Slot, 304 st., K 3 48618 Show
Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Show
Variofix upper section Designrost Spot, V2A, K 3 48620 Show
Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Show
Variofix upper section Designrost Kessel, V2A, L 15 48625 Show
Variofix upper section Designrost Oval, V2A, L 15 48626 Show
Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Show
Variofix upper section Designrost Oval, V4A, L 15 48670 Show
Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Show
Variofix upper section tileable, 304 st., K 3 48906 Show
Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
  Title Item no.
  Title Item no.
Adapter DN 50/40 27118 Show
Installation aid set for The Ultraflat 54 & 79 drain body 44702 Show
Clip flange The Ultraflat 79, Ecoguss, Practicus 44703 Show
Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
Extension section H: 140 mm, with glued flange 48403 Show
Extension section H: 147 mm, with pressure sealing flange 48404 Show
Odour trap Multistop, System 125 48500 Show
Odour trap Megastop 48550 Show
Extension section H: 120 mm, with glued flange 48900 Show
Extension section H: 136 mm, without inlet 48987 Show
Extension section H: 136 mm, with side inlet DN 50 48989 Show
  Title Item no.
Odour trap for The Ultraflat 79 680696 Show
  • Nominal size (DN) (nennweite): 50
  • Material of drain body (material_grundkoerper): ABS
  • TÜV test mark (pruefzeichen): ID 1111243495
