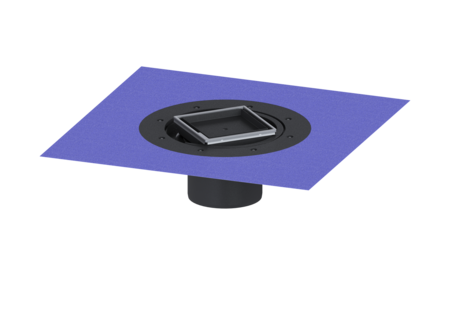

Variofix upper section
tileable, 304 st., K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.
- Different covers selectable
- Including waterproofing membrane
| Item no. | 48906 |
|---|---|
| GTIN | 4026092029756 |
| Price group | 10 |
Variofix upper section tileable, 304 st., K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water supply: W3-I Dimensions Vertical adjustment: 10 - 21 mm Net weight: 1,4 kg Gross weight: 1,62 kg Diameter: 312 mm Vertical adjustment: vertically adjustable upper section Height: 120 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Packaging dimension: length: 390 mm Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Frame material: Stainless steel 14301 Cover locking: lockable Load class: K 3 (EN 1253-1) Grating colour: optionally tileable Rim length: 132 mm Rim material: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
