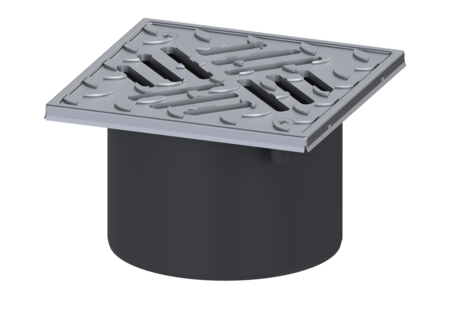

Upper section
Slotted cover, anti-slip, L 15
PDF product data sheet
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.
| Item no. | 48176 |
|---|---|
| GTIN | 4026092053706 |
| Discount group | 3 |
Upper section Slotted cover, anti-slip, L 15

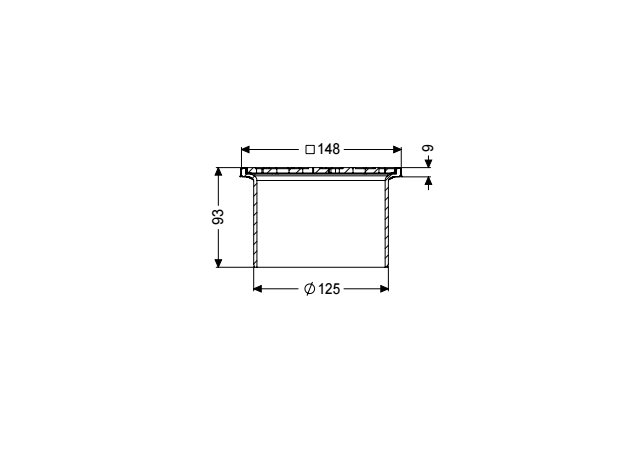

Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Dimensions: Height: 93 mm Coverage features: Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Load class: L 15 (EN 1253-1) Height: 18 mm Locking: screwed Grating: Rim length: 150 mm Rim width: 150 mm Rim material: Stainless steel 14301 Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Slotted cover solid , 138x138mm, stainless steel, L 15 | 680242 |
| Catalog Page | |
|---|---|
| CAD Data | |
| BIM Data |
- Advantages text (M-ATTR-007): The simple and economic solution
- Country of origin (ATTR-322): DE
- Rim material (ATTR-111):
Stainless steel 14301
- Rim length (ATTR-111B): 150 MMT
- Rim width (ATTR-111C): 150 MMT
- Height (ATTR-A6C): 93 MMT
- Volume (ATTR-320): 0.0 MTQ
- Packaging dimension: length (ATTR-325): 215 MMT
- Packaging dimension: width (ATTR-326): 190 MMT
- Packaging dimension: height (ATTR-327): 120 MMT
- Dimensions (ATTR-323): 215X190X120MM
- Number of packages (ATTR-321): 0
- Type of cover (ATTR-A21): Slotted cover
- Colour of cover (ATTR-A2A): silver
- Load class (ATTR-A2B): L 15 (EN 1253-1)
- Locking (ATTR-A2D): screwed
- Cover material (ATTR-A2E):
Stainless steel 14301
- Height (ATTR-A2P): 18 MMT
- - (ATTR-371):
- Net weight (ATTR-A3A): 0.7 KGM
- Gross weight (ATTR-A3B): 0.9 KGM
- Upper section material (ATTR-231):
ABS
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Drains
- Product type (M-ATTR-003): Upper section
