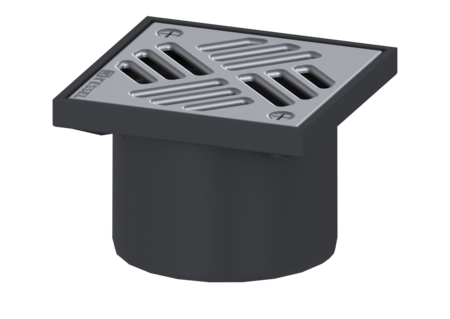

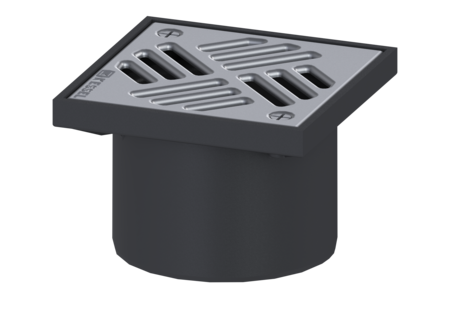

Upper section
Slot cover, 316 SST, 150 x 150 mm, K3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.
- Multiple combinations with suitable drain bodies
| Item no. | 48209 |
|---|---|
| GTIN | 4026092066577 |
| Price group | 10 |
Upper section Slot cover, 316 SST, 150 x 150 mm, K3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,46 kg Gross weight: 0,56 kg Height: 100 mm Packaging dimension: width: 200 mm Packaging dimension: height: 135 mm Packaging dimension: length: 220 mm Coverage features Type of cover: Slotted cover Cover material: 316 stainless steel Colour of cover: silver Height of cover: 16 mm Frame material: ABS Cover locking: screwed Load class: K 3 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Cover material (abdeckung_material):
316 stainless steel
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
