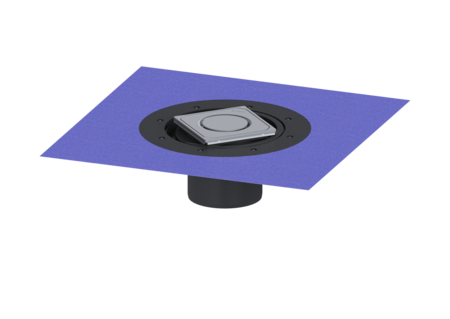

Variofix upper section

Designrost Spot, V2A, K 3

KESSEL Variofix upper section, System 125, surface, length 132 mm, width 132 mm, type of cover Design cover, locking placed, design cover Spot, Cover Stainless steel 14301

  • Different covers selectable
  • Including waterproofing membrane
Item no. 48620
GTIN 4026092044834
Price group 10

    Variofix upper section Designrost Spot, V2A, K 3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water supply: W3-I Dimensions Vertical adjustment: 10 - 23 mm Net weight: 1,5 kg Gross weight: 1,74 kg Diameter: 312 mm Vertical adjustment: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Cover locking: placed Load class: K 3 (EN 1253-1) Grating colour: Spot Rim length: 132 mm Rim material: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    Installation adhesive 2C installation mortar 48650 Show
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
