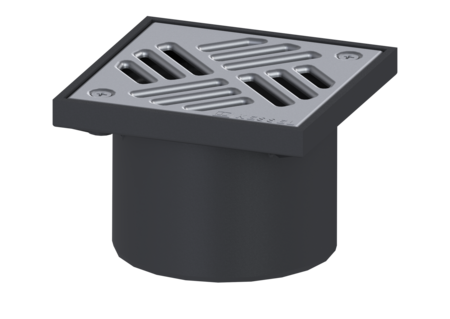

Upper section
Slot cover, 304 SST, 150 x 150 mm, K3


KESSEL Upper section, frame material ABS, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by
- Multiple combinations with suitable drain bodies
Item no. | 48950 |
---|---|
GTIN | 4026092004616 |
Price group | 10 |
Upper section Slot cover, 304 SST, 150 x 150 mm, K3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,49 kg Gross weight: 0,56 kg Height: 100 mm Packaging dimension: length: 218 mm Packaging dimension: width: 218 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Min. flooring height: 25 mm Surface: Polished SST Frame material: ABS Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Max. flooring height: 67 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data |
---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
