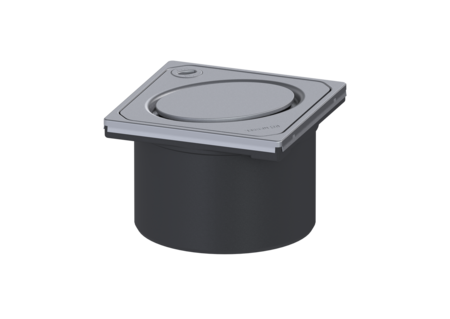

Upper section
Oval des cov, 304 SST, Lock&Lift, L 15
KESSEL Upper section, frame material Stainless steel 14301, length 132 mm, width 132 mm, type of cover Design cover, locking Lock & Lift, design cover Oval, Cover Stainless steel 14301, waterproofing layer upper section by
- Multiple combinations with suitable drain bodies
| Item no. | 48202 |
|---|---|
| GTIN | 4026092028759 |
| Price group | 10 |
Upper section Oval des cov, 304 SST, Lock&Lift, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,72 kg Gross weight: 0,72 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Min. flooring height: 16 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Oval Rim width: 132 mm Rim length: 132 mm Max. flooring height: 58 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- TÜV test mark (pruefzeichen):
ID 1111243495
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
