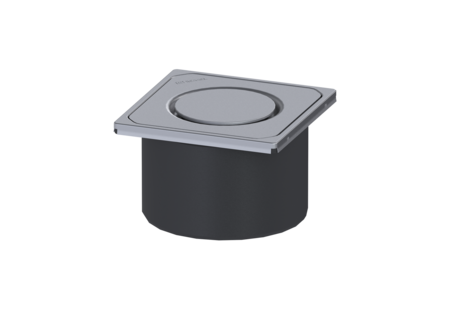

Upper section
Spot design cover, 304 SST, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.
- Multiple combinations with suitable drain bodies
| Item no. | 48220 |
|---|---|
| GTIN | 4026092042625 |
| Price group | 10 |
Upper section Spot design cover, 304 SST, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Dimensions Net weight: 0,66 kg Gross weight: 0,86 kg Height: 90 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Packaging dimension: length: 215 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Cover locking: placed Load class: K 3 (EN 1253-1) Grating colour: Spot Rim length: 132 mm Rim material: 132 mm Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
