Oval design cover, 316 SST, L 15

48228
48228
PDF product data sheet

KESSEL Upper section, frame material 316 stainless steel, length 132 mm, width 132 mm, type of cover Design cover, locking placed, design cover Oval, Cover 316 stainless steel, waterproofing layer upper section by

  • Multiple combinations with suitable drain bodies
Item no. 48228
GTIN 4026092077887
Price group 10

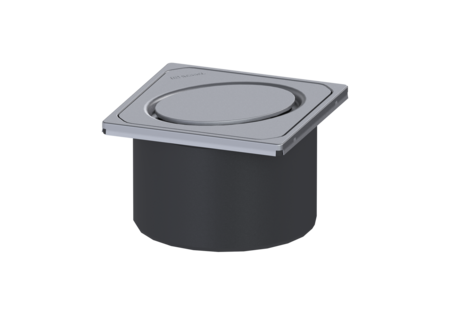

    Upper section Oval design cover, 316 SST, L 15
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics Sustainable: through the use of recycled material Dimensions Net weight: 0,74 kg Gross weight: 0,74 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: 316 stainless steel Colour of cover: silver Height of cover: 16 mm Min. flooring height: 9 mm Surface: ground Frame material: 316 stainless steel Locking: placed Load class: L 15 (EN 1253-1) Grating design: Oval Rim width: 132 mm Rim length: 132 mm Max. flooring height: 58 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): 316 stainless steel
    • Frame material (rahmen_material): 316 stainless steel
    • Upper section material (material_aufsatzstueck): ABS
