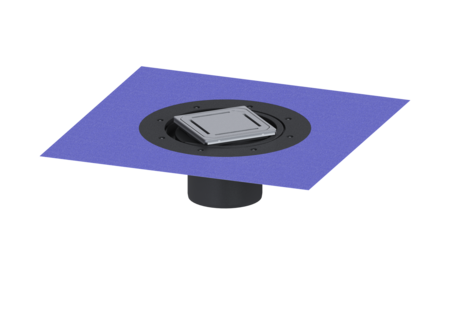

Variofix upper section
Design cover Slot, 304 st., K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.
- Different covers selectable
- Including waterproofing membrane
| Item no. | 48618 |
|---|---|
| GTIN | 4026092044926 |
| Price group | 10 |
Variofix upper section Design cover Slot, 304 st., K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water supply: W3-I Dimensions Vertical adjustment: 10 - 23 mm Net weight: 1,65 kg Gross weight: 1,86 kg Diameter: 312 mm Vertical adjustment: vertically adjustable upper section Height: 120 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Packaging dimension: length: 390 mm Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Cover locking: placed Load class: K 3 (EN 1253-1) Grating colour: Slot Rim length: 132 mm Rim material: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
