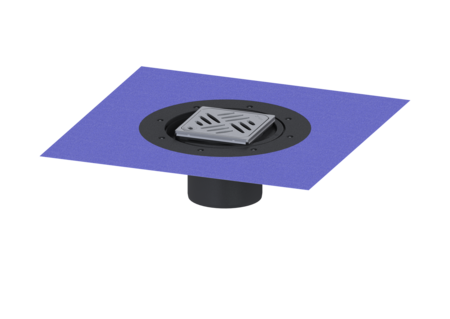

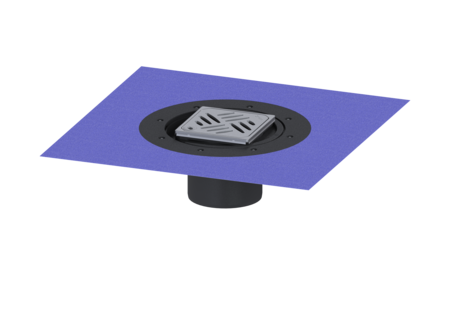

Variofix upper section

Kessel design cover, 304 SST, Lock & Lift, L15

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.

  • Different covers selectable
  • Including waterproofing membrane
Item no. 48904
GTIN 4026092028841
Discount group 1

Variofix upper section Kessel design cover, 304 SST, Lock & Lift, L15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Version: Seal: Lip seal System: 125 Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions: Height: 120 mm Diameter: 312 mm Vertical adjustment: vertically adjustable upper section Vertical adjustment: 10 - 23 mm Upper section: adjustable in three dimensions Coverage features: Type of cover: Design cover Grating design: Kessel Cover material: 304 stainless steel Colour of cover: silver Load class: L 15 (EN 1253-1) Locking: Lock & Lift Grating: Rim length: 132 mm Rim width: 132 mm Rim material: 304 stainless steel Upper section material: ABS
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Release key for Lock & Lift 680702
  • Waterproofing layer on the upper section (ATTR-251): Enclosed sealing collar to be glued (bd) according to DIN 18534
  • Advantages text (M-ATTR-007): The flexible solution for particular design standards
  • Rim material (ATTR-111): 304 stainless steel
  • Vertical adjustment (ATTR-226_VB): 10  MMT
  • Rim length (ATTR-111B): 132  MMT
  • Rim width (ATTR-111C): 132  MMT
  • Upper section (ATTR-337): adjustable in three dimensions
  • Seal (ATTR-114): Lip seal
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • System (ATTR-244): 125
  • Height (ATTR-A6C): 120  MMT
  • Diameter (ATTR-107): 312  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 390  MMT
  • Packaging dimension: width (ATTR-326): 190  MMT
  • Packaging dimension: height (ATTR-327): 310  MMT
  • Dimensions (ATTR-323): 390X190X310MM
  • Number of packages (ATTR-321): 0
  • Grating design (ATTR-112): Kessel
  • Type of cover (ATTR-A21): Design cover
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): 304 stainless steel
  • Diameter (ATTR-A107): 312  MMT
  • - (ATTR-371):
  • Net weight (ATTR-A3A): 1.5  KGM
  • Gross weight (ATTR-A3B): 1.8  KGM
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Upper section material (ATTR-231): ABS
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
  • Product family (M-ATTR-004): Variofix
  • Product name (M-ATTR-005): Variofix
