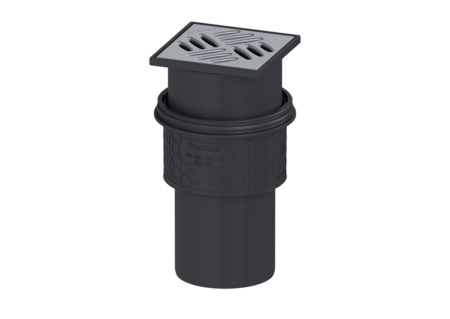

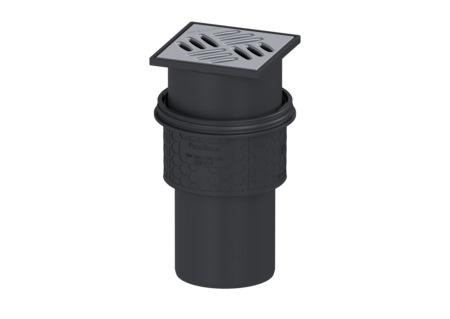

Practicus floor/roof drain

DN 100, vertical, Slotted grating

The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding.

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
Item no. 45210.20
GTIN 4026092055649
Price group 10

    Practicus floor/roof drain DN 100, vertical, Slotted grating
    The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 2 General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Vertical adjustment: 9 - 62 mm Net weight: 1,05 kg Gross weight: 1,05 kg Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Vertical adjustment: vertically adjustable upper section Width: 156 mm Height: 210 mm Length: 156 mm Packaging dimension: width: 156 mm Packaging dimension: height: 213 mm Packaging dimension: length: 156 mm Tank/drain body Connection inlet/outlet sockets: The outlet spigot is suitable for connection to SML pipes. Material of drain body: PP System: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Cover locking: unscrewed Load class: K 3 (EN 1253-1) Grating colour: Kessel Rim length: 130 mm Rim material: 130 mm Upper section: vertically adjustable Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Clip flange The Ultraflat 79, Ecoguss, Practicus 44703 Show
    Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    Fire protection insert Fire-Kit 100, for DN 100 48100 Show
    Sludge bucket d: 120 mm 48168 Show
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Ecoguss pressure sealing flange System 125, incl. fixing clips 48407 Show
    Glued flange with mating flange, ABS, System 125 48410 Show
    Odour trap Multistop, System 125 48500 Show
    Odour trap Megastop 48550 Show
    Odour trap System 125, Sealing water height 50 mm 48600 Show
    Installation adhesive 2C installation mortar 48650 Show
    Waterproofing membrane for joint sealing, liquid 48651 Show
    Hair filter Polymer, for System 125 bathroom drains 48700 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Membrane for System 125, Waterproof concrete 48981 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
    Quick-Fit with fire protection insert 48990 Show
    Quick-Fit without fire protection insert 48991 Show
      Title Item no.
    Slotted cover 120x120 mm, stainless steel 680243 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • System (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
