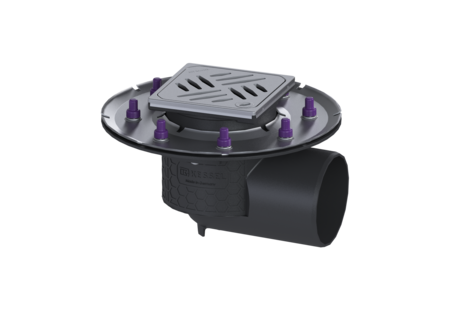

Practicus floor drain press.seal.
DN 100, horizontal, Design grating
KESSEL Practicus floor drain press.seal., cover length 120 mm, socket lateral, nominal size (DN) 100, odour trap included, type of cover Design cover, design cover Kessel, waterproofing layer upper section by Connection flange
- Hygiene: hygienic, absolutely corrosion-free and durable material
- Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
Item no. | 45119.63 |
---|---|
GTIN | 4026092034064 |
Price group | 10 |
Practicus floor drain press.seal. DN 100, horizontal, Design grating
The Practicus polymer floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 1,5 General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm ATEX: no Odour trap: included Dimensions Net weight: 2,41 kg Gross weight: 2,77 kg Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 400 mm Packaging dimension: width: 300 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Connection inlet/outlet sockets: The outlet spigot is suitable for connection to SML pipes. Material of drain body: PP Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section H: 140 mm, with glued flange | 48403 | Show | |
Extension section H: 147 mm, with pressure sealing flange | 48404 | Show | |
Extension section H: 120 mm, with glued flange | 48900 | Show | |
Membrane for System 125, Waterproof concrete | 48981 | Show | |
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
Title | Item no. | ||
---|---|---|---|
Odour trap for Practicus, Ecoguss, Ferrofix | 27169 | Show | |
Practicus drain body Press. fl., DN 100, Horizontal outlet | 45119 | Show | |
Upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48201 | Show | |
Ecoguss pressure sealing flange System 125, incl. fixing clips | 48407 | Show | |
Design cover Oval, Lock & Lift | 680225 | Show | |
Design cover KESSEL, Lock & Lift | 680226 | Show | |
Design cover Cross, Lock & Lift | 680235 | Show | |
Design cover Parade, Lock & Lift | 680236 | Show | |
Design cover Festival, Lock & Lift | 680237 | Show | |
Design cover Spot, Lock & Lift | 680238 | Show | |
Design cover Slot, Lock & Lift | 680239 | Show | |
Design cover Sticks, Lock & Lift | 680240 | Show | |
Release key for Lock & Lift | 680702 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper): PP
- Cover material (abdeckung_material): Stainless steel 14301
- Frame material (rahmen_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- Socket version (stutzen_ausfuehrung): lateral
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
