Practicus drain body

Press. fl., DN 50, Vertical outlet

45259
45259
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket vertical, nominal size (DN) 50, odour trap included, drainage by Point drain, waterproofing layer upper section by

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
  • Fire protection: combinable with the Fire-Kit for fire and smoke protection
Item no. 45259
GTIN 4026092033807
Price group 10

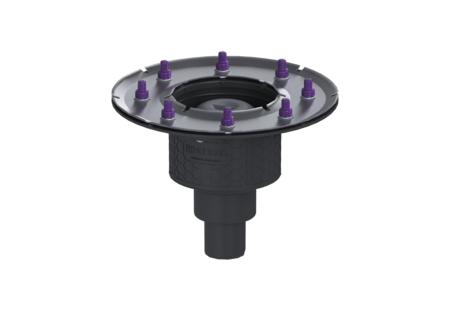

    Practicus drain body Press. fl., DN 50, Vertical outlet
    In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Dimensions Net weight: 1,77 kg Gross weight: 2,06 kg Diameter: 273 mm Height: 207 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical
      Title Item no.
    48176 Upper section Slotted cover, anti-slip, L 15 48176 Show
    48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
      Title Item no.
      Title Item no.
    48099 Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss): included
