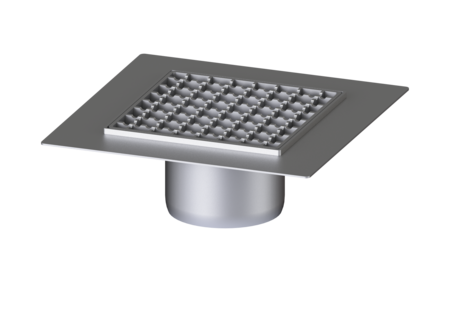

Ferrofix upper section
Sys 125, GF6, grated cov 200x200mm L 15
KESSEL Ferrofix upper section, surface pickled, length 300 mm, width 300 mm, type of cover Slotted cover, locking placed, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers)
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 54928 |
|---|---|
| GTIN | 4026092099896 |
| Price group | 70 |
Ferrofix upper section Sys 125, GF6, grated cov 200x200mm L 15
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Net weight: 4,04 kg Gross weight: 4,39 kg Length: 300 mm Width: 300 mm Height: 110 mm Packaging dimension: length: 395 mm Packaging dimension: width: 195 mm Packaging dimension: height: 320 mm Coverage features Type of cover: Slotted cover Width of cover: 200 mm Height of cover: 6 mm Length of cover: 200 mm Surface: pickled Locking: placed Load class: L 15 (EN 1253-1) Max. flooring height: 6 mm Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
