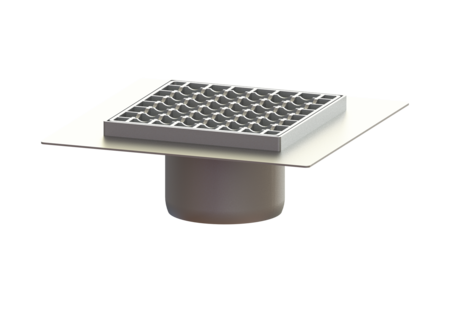

Ferrofix upper section
Sys 125, Gl fl., slot grat., 200x200 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards).
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 54917 |
|---|---|
| GTIN | 4026092072431 |
| Price group | 70 |
Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Net weight: 4,34 kg Gross weight: 4,78 kg Width: 300 mm Height: 100 mm Length: 300 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Packaging dimension: length: 390 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: pickled Cover locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Rim length: 200 mm Rim material: 200 mm Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
