Ferrofix upper section

glue flange H: 6mm,300x300mm,slot grat.

54929
54929
PDF product data sheet

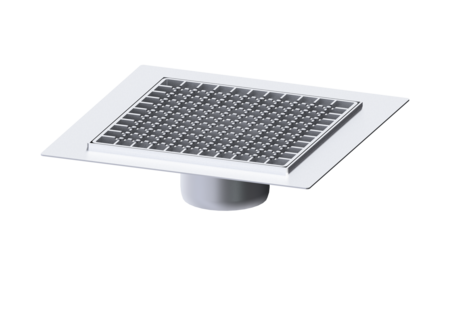

KESSEL Ferrofix upper section, surface pickled, length 400 mm, width 400 mm, type of cover Slotted cover, locking placed, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers)

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54929
GTIN 4026092099902
Price group 70

    Ferrofix upper section glue flange H: 6mm,300x300mm,slot grat.
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Net weight: 7,95 kg Gross weight: 8,86 kg Length: 400 mm Width: 400 mm Height: 110 mm Packaging dimension: length: 440 mm Packaging dimension: width: 440 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Slotted cover Width of cover: 300 mm Height of cover: 6 mm Length of cover: 300 mm Surface: pickled Locking: placed Load class: L 15 / M 125 (EN 1253-1) Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
