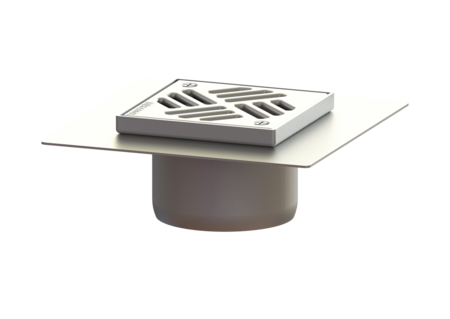

Ferrofix upper section

Sys125, Gl fl., Slot cover, 146x146 mm

Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards).

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54919
GTIN 4026092072424
Price group 70

    Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 2,09 kg Gross weight: 2,09 kg Width: 246 mm Height: 100 mm Length: 246 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Packaging dimension: length: 210 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: Polished SST Cover locking: screwed Load class: K 3 (EN 1253-1) Rim length: 146 mm Rim material: 146 mm Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Slotted cover 138x138 mm, SST 27154 Show
    Slotted cover 138x138 mm, screwed 27155 Show
    CAD Data
    Test Reports and Certificates
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
