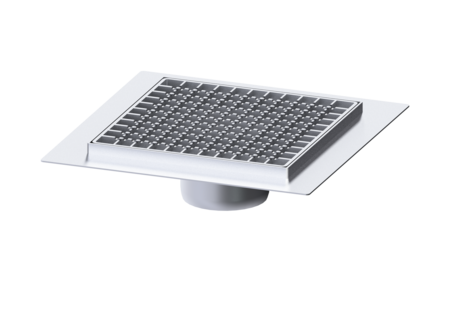

Ferrofix upper section

glue flan. H: 15mm,300x300mm,slot grat.

Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards).

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54923
GTIN 4026092098653
Price group 70

    Ferrofix upper section glue flan. H: 15mm,300x300mm,slot grat.
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water supply: W3-I General characteristics Standard: EN 1253-1 Dimensions Net weight: 7,95 kg Gross weight: 8,86 kg Width: 400 mm Height: 110 mm Length: 400 mm Packaging dimension: width: 440 mm Packaging dimension: height: 175 mm Packaging dimension: length: 440 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 300 mm Height of cover: 15 mm Length of cover: 300 mm Surface: pickled Cover locking: placed Load class: L 15 / M 125 (EN 1253-1) Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
