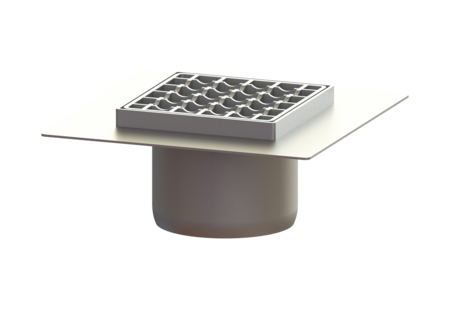

Ferrofix upper section

Sys 125, Gl fl., Slotted grating, 146x146 mm

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage.

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54915
GTIN 4026092072462
Discount group 3

Ferrofix upper section Sys 125, Gl fl., Slotted grating, 146x146 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Version: System: 125 Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions: Length: 246 mm Width: 246 mm Height: 100 mm Coverage features: Type of cover: Slotted cover Cover material: 304 stainless steel Load class: L 15 / M 125 (EN 1253-1) Height: 15 mm Surface: pickled Locking: unlocked Mesh size: 23 x 23 mm Grating: Rim length: 146 mm Rim width: 146 mm Upper section material: 304 stainless steel
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Slotted grating solid, stainless steel 680223
  • Waterproofing layer on the upper section (ATTR-251): Adhesive flange (suitable for moisture barriers)
  • Advantages text (M-ATTR-007): The robust solution made of a particularly hygienic and mechanically highly resistant stainless steel
  • Country of origin (ATTR-322): DE
  • Rim length (ATTR-111B): 146  MMT
  • Rim width (ATTR-111C): 146  MMT
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Note on installation depth (ATTR-188):
  • System (ATTR-244): 125
  • Length (ATTR-A6A): 246  MMT
  • Width (ATTR-A6B): 246  MMT
  • Height (ATTR-A6C): 100  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 247  MMT
  • Packaging dimension: width (ATTR-326): 247  MMT
  • Packaging dimension: height (ATTR-327): 180  MMT
  • Dimensions (ATTR-323): 247X247X180MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Slotted cover
  • Load class (ATTR-A2B): L 15 / M 125 (EN 1253-1)
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): 304 stainless steel
  • Surface (ATTR-A2F): pickled
  • Height (ATTR-A2P): 15  MMT
  • Mesh size (ATTR-344): 23 x 23 mm
  • Net weight (ATTR-A3A): 2.7  KGM
  • Gross weight (ATTR-A3B): 2.9  KGM
  • Upper section material (ATTR-231): 304 stainless steel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
