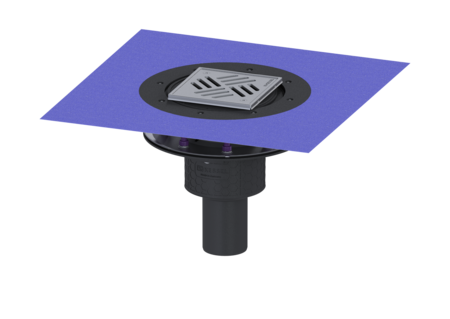

Practicus floor drain press.seal.
DN 70, vert., Variofix, Slotted grating
KESSEL Practicus floor drain press.seal., cover length 138 mm, socket vertical, nominal size (DN) 70, odour trap included, type of cover Slotted cover, design cover Kessel, adjustable in three dimensions
- Hygiene: hygienic, absolutely corrosion-free and durable material
- Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
- Fire protection: combinable with the Fire-Kit for fire and smoke protection
| Item no. | 45279.51 |
|---|---|
| GTIN | 4026092033067 |
| Price group | 10 |
Practicus floor drain press.seal. DN 70, vert., Variofix, Slotted grating
The Practicus polymer floor/roof drain is designed for point drainage and is fitted with a pressure sealing flange, a removable odour trap, a lip seal and a temporary protective cover. Includes a vertically adjustable, height-adjustable upper section made of polymer. The drain meets specific sound insulation requirements as measured by the Fraunhofer Institute in Stuttgart. The pressure sealing flange is suitable for use with standard waterproofing layers in accordance with the installation instructions, as well as flame-applied bituminous membranes. For watertight waterproofing layers, only waterproofing sheets tested by the manufacturer may be used. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 2 General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 75 mm Odour trap: included Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Product picture: 1246533644 Sectional views: 1005878859 Historical images: 1534794861 Dimensions Vertical adjustment: 10 - 18 mm Net weight: 2,89 kg Gross weight: 3,88 kg Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Length of cover: 138 mm Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Show |
 | Extension section H: 140 mm, with glued flange | 48403 | Show |
 | Extension section H: 147 mm, with pressure sealing flange | 48404 | Show |
 | Extension section H: 120 mm, with glued flange | 48900 | Show |
 | Membrane for System 125, Waterproof concrete | 48981 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
 | Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Show |
 | Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Odour trap for Practicus, Ecoguss, Ferrofix | 27169 | Show |
 | Practicus drain body Press. fl., DN 70, Vertical outlet | 45279 | Show |
 | Ecoguss pressure sealing flange System 125, incl. fixing clips | 48407 | Show |
 | Waterproofing membrane for joint sealing, liquid | 48651 | Show |
 | Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Approval | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper):
PP
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
vertical
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
