Practicus floor drain press.seal.

DN 50, vert., Variofix, Slotted grating

45259.51
45259.51

KESSEL Practicus floor drain press.seal., cover length 138 mm, socket vertical, nominal size (DN) 50, odour trap included, type of cover Slotted cover, design cover Kessel, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
  • Fire protection: combinable with the Fire-Kit for fire and smoke protection
Item no. 45259.51
GTIN 4026092034125
Price group 10

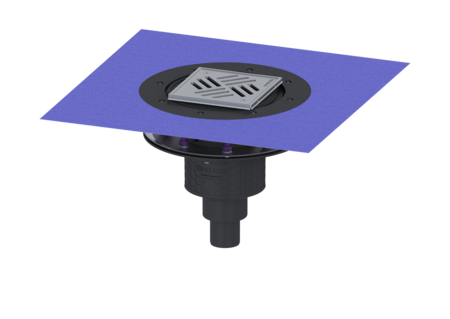

    Practicus floor drain press.seal. DN 50, vert., Variofix, Slotted grating
    The Practicus polymer floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 2,1 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Vertical adjustment: 10 - 18 mm Net weight: 2,91 kg Gross weight: 3,9 kg Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Length of cover: 138 mm Frame material: Stainless steel 14301 Locking: screwed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    48099 Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48981 Membrane for System 125, Waterproof concrete 48981 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
    48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
      Title Item no.
    27169 Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    45259 Practicus drain body Press. fl., DN 50, Vertical outlet 45259 Show
    48407 Ecoguss pressure sealing flange System 125, incl. fixing clips 48407 Show
    48651 Waterproofing membrane for joint sealing, liquid 48651 Show
    48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
