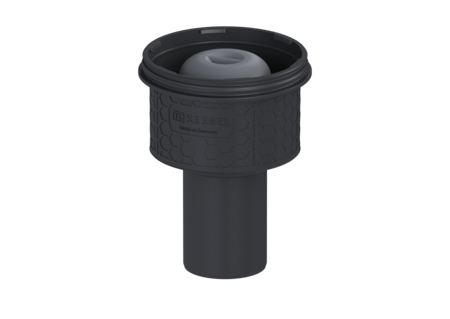

Practicus drain body

DN 70, Vertical outlet

In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart.

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
Item no. 45270
GTIN 4026092033586
Price group 10

Practicus drain body DN 70, Vertical outlet
In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Nominal size (DN): 70 Outer diameter (OD): 75 mm Dimensions Net weight: 0,6 kg Gross weight: 0,71 kg Diameter: 135 mm Height: 201 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Packaging dimension: length: 200 mm Tank/drain body Number of outlets: 1 Material of drain body: PP System: vertical Coverage features Odour trap: included
  Title Item no.
Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Show
Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Show
Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Show
Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Show
Variofix upper section Slotted cover, 316 SST, K 3 48206 Show
Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Show
Upper section tileable, 304 SST, K 3 48211 Show
Upper section Slot design cover, 304 SST, K 3 48218 Show
Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Show
Upper section Spot design cover, 304 SST, K 3 48220 Show
Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Show
Upper section Kessel design cover, 304 SST, L 15 48225 Show
Upper section Oval design cover, 304 SST, L 15 48226 Show
Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Show
Upper section Oval design cover, 316 SST, L 15 48228 Show
Variofix upper section Design cover Slot, 304 st., K 3 48618 Show
Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Show
Variofix upper section Designrost Spot, V2A, K 3 48620 Show
Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Show
Variofix upper section Designrost Kessel, V2A, L 15 48625 Show
Variofix upper section Designrost Oval, V2A, L 15 48626 Show
Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Show
Variofix upper section Designrost Oval, V4A, L 15 48670 Show
Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Show
Variofix upper section tileable, 304 st., K 3 48906 Show
Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 48928M Show
Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 48929M Show
Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 48930M Show
Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 48931M Show
Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 48932M Show
Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
  Title Item no.
  Title Item no.
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
Fire protection insert Fire-Kit 100, for DN 100 48100 Show
Extension section H: 140 mm, with glued flange 48403 Show
Extension section H: 147 mm, with pressure sealing flange 48404 Show
Extension section H: 120 mm, with glued flange 48900 Show
Extension section H: 136 mm, without inlet 48987 Show
Extension section H: 136 mm, with side inlet DN 50 48989 Show
Quick-Fit with fire protection insert 48990 Show
  Title Item no.
  • Nominal size (DN) (nennweite): 70
  • Material of drain body (material_grundkoerper): PP
  • TÜV test mark (pruefzeichen): ID 1111244461
  • System (stutzen_ausfuehrung): vertical
  • Odour trap (geruchsverschluss): included
