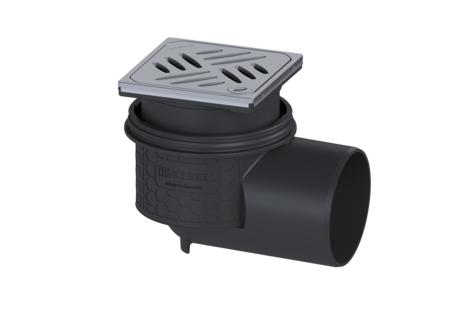

Practicus floor/roof drain

DN 100, horizontal, Design grating

KESSEL Practicus floor/roof drain, cover length 120 mm, type of waterproofing, socket lateral, nominal size (DN) 100, odour trap included, drainage by Point drain, type of cover Design cover, design cover Kessel

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
Item no. 45110.63
GTIN 4026092052846
Price group 10

    Practicus floor/roof drain DN 100, horizontal, Design grating
    The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 1,5 General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Net weight: 1,5 kg Gross weight: 1,94 kg Cutout dimension, width: 180 mm Cutout dimension, length: 220 mm Vertical adjustment: vertically adjustable upper section Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Connection inlet/outlet sockets: The outlet spigot is suitable for connection to SML pipes. Material of drain body: PP System: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Cover locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating colour: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim length: 132 mm Rim material: 132 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    Practicus drain body DN 100, Horizontal outlet 45110 Show
    Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
    Design cover Oval, Lock & Lift 680225 Show
    Design cover KESSEL, Lock & Lift 680226 Show
    Design cover Cross, Lock & Lift 680235 Show
    Design cover Parade, Lock & Lift 680236 Show
    Design cover Festival, Lock & Lift 680237 Show
    Design cover Spot, Lock & Lift 680238 Show
    Design cover Slot, Lock & Lift 680239 Show
    Design cover Sticks, Lock & Lift 680240 Show
    Release key for Lock & Lift 680702 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • System (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
