Practicus floor/roof drain

DN 50, vertical, Slotted grating

PDF product data sheet

KESSEL Practicus floor/roof drain, cover length 120 mm, type of waterproofing, socket vertical, nominal size (DN) 50, odour trap included, type of cover Slotted cover, design cover Kessel

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • Sound insulation: outstanding sound insulation effect confirmed by the Fraunhofer Institute
  • Fire protection: combinable with the Fire-Kit for fire and smoke protection
Item no. 45250.20
GTIN 4026092092446
Price group 10

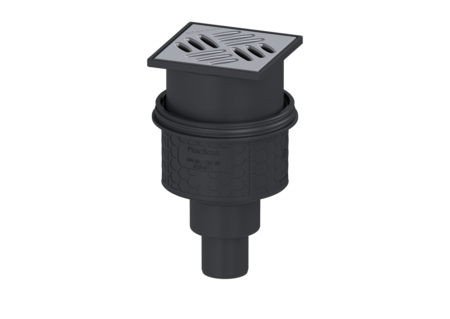

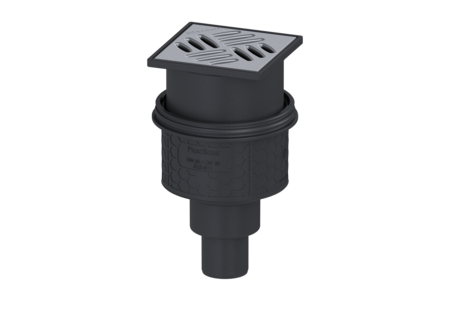

    Practicus floor/roof drain DN 50, vertical, Slotted grating
    The Practicus floor drain is used for point drainage and is equipped with a connection flange as well as a removable odour trap, a lip seal and a temporary protective cover. Including telescopic height-adjustable upper section made of ABS. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 2 General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Approval: Z-19.53-2414,Z-19.17-1719 Dimensions Vertical adjustment: 9 - 62 mm Net weight: 0,57 kg Gross weight: 0,89 kg Cutout dimension, width: 180 mm Cutout dimension, length: 180 mm Type of height adjustability: vertically adjustable upper section Length: 156 mm Width: 156 mm Height: 210 mm Packaging dimension: length: 156 mm Packaging dimension: width: 156 mm Packaging dimension: height: 203 mm Tank/drain body Material of drain body: PP Socket version: vertical Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Locking: unscrewed Load class: K 3 (EN 1253-1) Grating design: Kessel Rim width: 130 mm Rim length: 130 mm Upper section: vertically adjustable Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    Fire protection insert Fire-Kit 100, for DN 100 48100 Show
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
    Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
    Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
      Title Item no.
    Slotted cover 120x120 mm, stainless steel 680243 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
