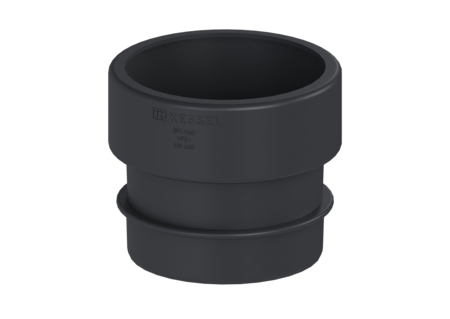

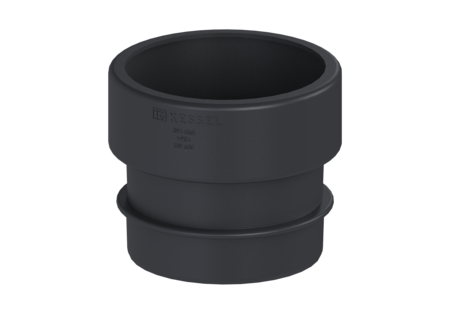

Extension section
d: 600 mm, Extension 500 mm
Extension section suitable for tanks with opening LW 600 in the domed area for installation underground, including lip seal and sealing grease. Suitable in conjunction with upper section made of polymer LW 600, extension section can be shortened by 190 mm, maximum push-in depth of the upper section in the extension section 250 mm. Extension height: 500 mm
| Item no. | 917460 |
|---|---|
| GTIN | 4026092073285 |
| Price group | 60 |
Extension section d: 600 mm, Extension 500 mm
Extension section suitable for tanks with opening LW 600 in the domed area for installation underground, including lip seal and sealing grease. Suitable in conjunction with upper section made of polymer LW 600, extension section can be shortened by 190 mm, maximum push-in depth of the upper section in the extension section 250 mm. Extension height: 500 mm General characteristics Colour: black Material: Polymer Dimensions Net weight: 22 kg Gross weight: 27 kg Diameter: 750 mm Clear width (LW): 600 mm Packaging dimension: width: 900 mm Packaging dimension: height: 755 mm Packaging dimension: length: 900 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Material (material):
Polymer
