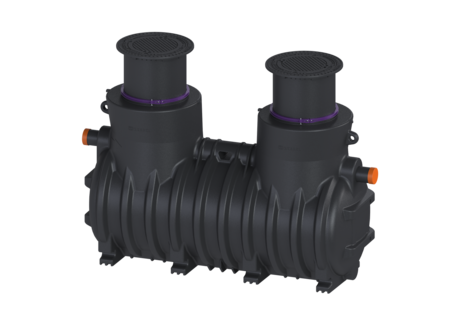

EasyOil coalescence separator

NS 10, Class I, 2600 l, B, In/outlet PE

KESSEL EasyOil coalescence separator, nominal size 10, separator class I, load class B 125, sludge trap capacity 1500 l, total volume 2600 l

    • Permanent leak tightness up to ground level
    • Resistant to and suitable for up to 100 % share of biodiesel (FAME)
    • Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
    Item no. 99710.15BEX
    Price group 60

      EasyOil coalescence separator NS 10, Class I, 2600 l, B, In/outlet PE

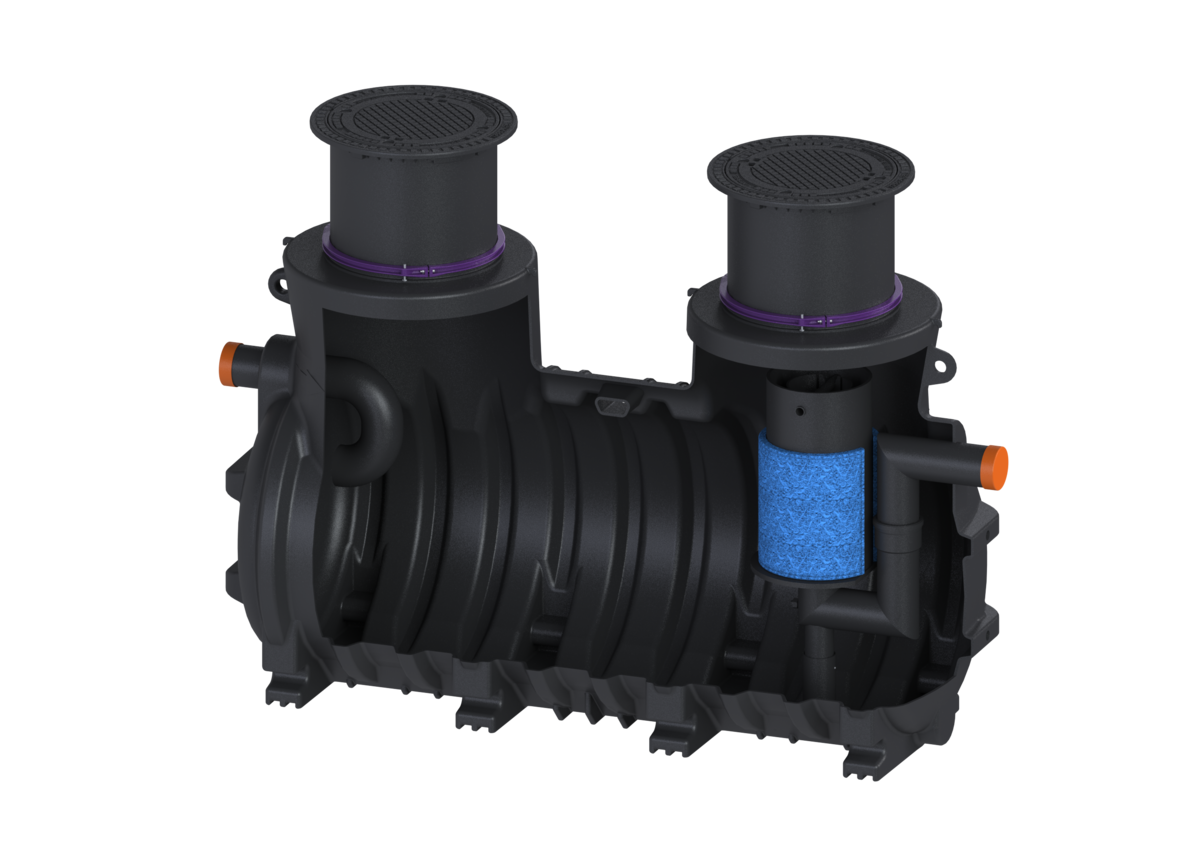

      The separator for light liquids is suitable for installation in the ground and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. Two surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Nominal size (NS): 10 Type of disposal: manual with suction hose Coalescence insert: yes Load-bearing capacity (DIN 19901): E2 General characteristics Separator class: I Dimensions Net weight: 404 kg Gross weight: 416 kg Groundwater resistant from lower edge of base section: 1320 mm Excess depth: 100 mm Load-bearing capacity (DIN 19901): 700 - 1.800 4MS common composition list: 155 Max. length: 3162 mm Installation depth: 840 - 1240 mm Required access area, length: 2910 mm Required access area, width: 1200 mm Packaging dimension: length: 2860 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2300 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1070 mm Distance pipe bottom inlet to tank bottom: 1110 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Width of cover: 648 mm Height of cover: 95 mm Length of cover: 648 mm Cover locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Total volume: 2600 l Hose: 1500 l Sealing water height: 267 l Control Control unit: no
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Nominal size (NS) (nenngroesse): 10
      • Load class (belastungsklasse): B 125 (EN 124)
      • Installation depth (einbautiefe): 840  mm
