Pump installation kit Retrofit M

Duo, GTF 1200, submersible pres. switch

8744004
8744004
PDF product data sheet

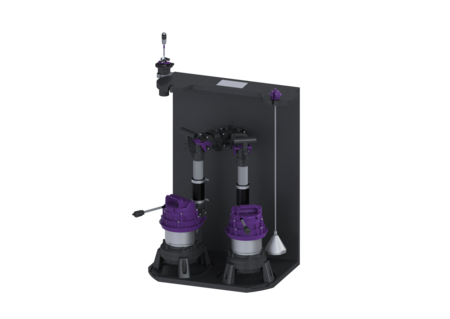

KESSEL Pump installation kit Retrofit M Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 1200 pumps, 230 V, delivery rate 15,5 m³/h, Backflow preventer integrated, alarm generator with optical probe

    Item no. 8744004
    GTIN 4026092103340
    Price group 60

      Pump installation kit Retrofit M Duo, GTF 1200, submersible pres. switch
      The pump installation kit for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps suitable for continuous operation, and two backflow preventers. The compact polymer (PU) bracket is used for the variable mounting of components in various application scenarios and to fasten the pumping system, even in confined spaces. The components are pre-assembled for final assembly on site. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo Dimensions Net weight: 22 kg Gross weight: 22 kg Packaging dimension: length: 684 mm Packaging dimension: width: 630 mm Packaging dimension: height: 745 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Pumping device Pump: GTF 1200 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Operating voltage: 230 V Mains frequency: 50 Hz Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 6,2 A Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): without sewage
      • Alarm sensor (alarmgeber): optical probe
      • Pump (pumpe): GTF 1200
      • Impeller type (laufrad_typ): Multi-vane impeller
