Pump installation kit Retrofit L

Tronic, GTF4000-S1, level sensor

GTF4000-M
PDF product data sheet

KESSEL Pump installation kit Retrofit L Tronic, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), installation in on-site collecting tank, with a submersible GTF 4000 pump, alarm generator with Level sensor, 400 V, delivery rate 53 m³/h

    Item no. GTF4000-M
    Price group 60

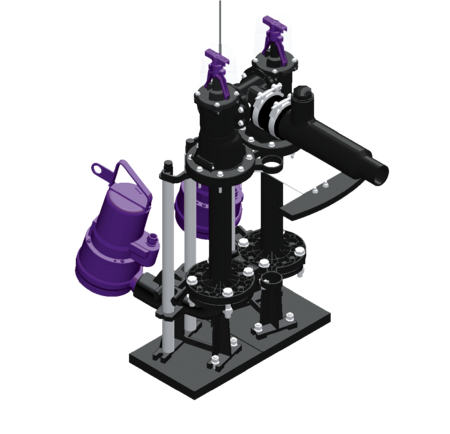

      Pump installation kit Retrofit L Tronic, GTF4000-S1, level sensor
      The pump installation kit for installation in existing collection tanks for wastewater with and without sewage is equipped with two floodable pumps, two backwater preventers and two shut-off valves. The metal sliding rods are used to mount and secure the pumps. Control is by means of pressure control via a user-friendly control unit, which can optionally be integrated into the building management system via a potential-free contact or output alarm and collective fault messages via a GSM interface. Variant Type of system: Single unit Shut-off valve: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Tronic Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Pumping device Pump: GTF 4000 Number of pumps: 1 Weight, pump: 12 kg Connection type: coded plug Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 53 m³/h Max. pumping height: 18 m Speed: 2900 U/min Power P1: 4 kW Power P2: 3,4 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 6,6 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (control unit): 3 x C 32 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): GTF 4000
      • Type of wastewater (abwasserart_de): for wastewater with or without sewage (in installation situations without ATEX requirements)
      • Impeller type (laufrad_typ): Multi-vane impeller
