Pump system Aquapump Retrofit

Tronic, GTF2600-S1, level sensor

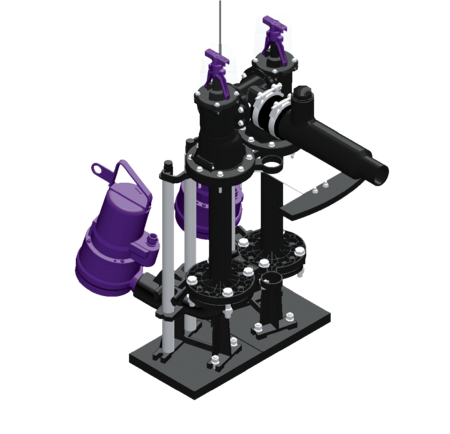

The retrofit kit for installation in existing collection tanks for faecal-free wastewater is equipped with two submersible pumps, a backflow preventer and a manual locking device. The polymer profile (PE) is used to mount and fix the pumping station. Quick-release closures enable easy removal of the pumps. The station is controlled either by a float switch or by a user-friendly control unit, which can be optionally integrated in the building control system via a voltage-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface.

    Item no. GTF2600-M
    Price group 60

      Pump system Aquapump Retrofit Tronic, GTF2600-S1, level sensor
      Pump system, wet installation, for installation in an on-site chamber module. - For wastewater without sewage - Pressure pipe, pre-assembled at the factory, with mounting parts, a backflow preventer and shut-off valve - Pump with a single-vane impeller for optimum energy efficiency - Including a level probe for level measurement - Including a KESSEL Aqualift Comfort 400 V control unit User-friendly menu navigation in a multi-line display. With a self-diagnosis system (SDS) and reminder function for the next maintenance. Display of the current measured values. Simple adjustment of the function-related parameters, including an operating hour counter and potential-free contact. Optional forwarding of alarm and collective fault messages via a GSM interface. -Required minimum diameter of the on-site chamber module: 1000 mm Variant Type of system: Single unit Shut-off valve: yes Rim width: Control unit Backwater protection: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Tronic Dimensions Net weight: 160 kg Gross weight: 183 kg Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Pumping device Pump control: GTF 2600 Number of pumps: 1 Weight: 12 kg Connection type: coded plug Rated current: 4,5 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 46 m³/h Max. pumping height: 13,6 m Speed: 2900 U/min Power P1: 2,6 kW Power P2: 2,1 kW Operating mode: S1 Type of fuse required (electrical protection): 3 x C 20 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Control Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      Test Reports and Certificates
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): without sewage
      • Alarm sensor (alarmgeber): Level sensor
      • Pump control (pumpe): GTF 2600
      • Impeller type (laufrad_typ): Multi-vane impeller
