Pump system Aquapump Retrofit

Duo, STZ1000-S3, subm. pressure switch

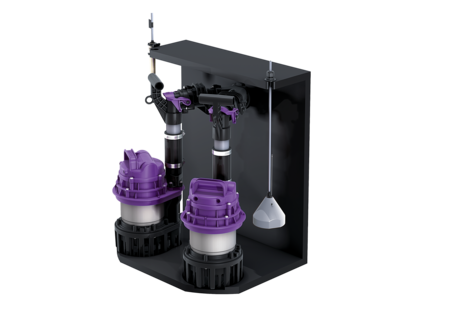

KESSEL Pump system Aquapump Retrofit Duo, wastewater with sewage, installation in on-site collecting tank, with 2 submersible STZ 1000 pumps, operating mode S3 - 50 %, level measurement Submersible pressure switch, Backflow preventer integrated

    Item no. AQUALI1000F_D
    Price group 60

      Pump system Aquapump Retrofit Duo, STZ1000-S3, subm. pressure switch
      The retrofit kit for installation in existing collection tanks for faecal-free wastewater is equipped with two submersible pumps, a backflow preventer and a manual locking device. The polymer profile (PE) is used to mount and fix the pumping station. Quick-release closures enable easy removal of the pumps. The station is controlled either by a float switch or by a user-friendly control unit, which can be optionally integrated in the building control system via a voltage-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: with sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo Pumping device Pump: STZ 1000 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,2 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): with sewage
      • Alarm sensor (alarmgeber): optical probe
      • Pump (pumpe): STZ 1000
      • Impeller type (laufrad_typ): Macerator
