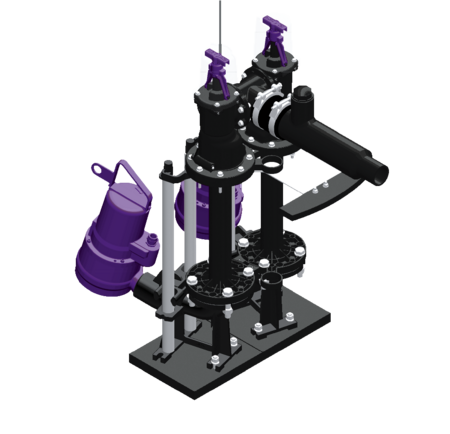

Pump installation kit Retrofit L
Tronic, STZ2500-S1, level sensor
The pump installation kit, designed for fitting into existing collection tanks for sewage with faecal matter, is fitted with one or two submersible pumps, two backwater preventers and two shut-off valves. The metal sliding linkage is used to mount and secure the pumps. Control is achieved via pressure control using a user-friendly control unit, which can optionally be integrated into the building management system via a potential-free contact or can transmit alarm and collective fault messages via a GSM interface.
| Item no. | STZ2500-M |
|---|---|
| Price group | 60 |
Pump installation kit Retrofit L Tronic, STZ2500-S1, level sensor
The pump installation kit, designed for fitting into existing collection tanks for sewage with faecal matter, is fitted with one or two submersible pumps, two backwater preventers and two shut-off valves. The metal sliding linkage is used to mount and secure the pumps. Control is achieved via pressure control using a user-friendly control unit, which can optionally be integrated into the building management system via a potential-free contact or can transmit alarm and collective fault messages via a GSM interface. Variant Type of system: Single unit Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: with sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Tronic Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Pumping device Pump: STZ 2500 Number of pumps: 1 Connection type: coded plug Operating voltage: 400 V Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21 m³/h Max. pumping height: 33 m Speed: 2900 U/min Power P1: 2,5 kW Power P2: 1,9 kW Operating mode: S1 Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Rated current: 4,4 A Control Control unit: Comfort Operating voltage: 400 V Protection class control unit: IP 54 Type of fuse required (control unit): 3 x C 16 A Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes Potential-free contact: optional Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic USB interface: yes Connection type: coded plug Length of mains cable for control unit: 1,4 m GSM interface: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet |
|---|
- Control unit (schaltgeraet): Comfort
- Type of wastewater (abwasserart_de): with sewage
- Alarm sensor (alarmgeber): Level sensor
- Pump (pumpe): STZ 2500
- Impeller type (laufrad_typ): Macerator
