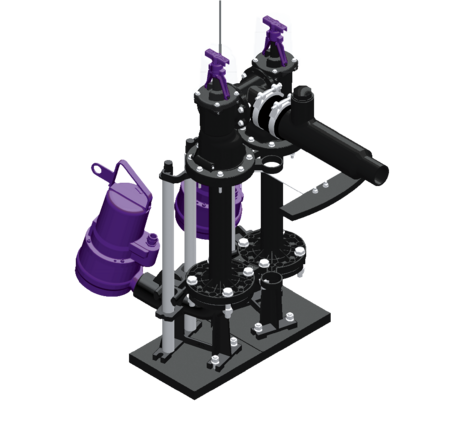

The pump installation kit, designed for fitting into existing collection tanks for sewage with faecal matter, is fitted with one or two submersible pumps, two backwater preventers and two shut-off valves.
The metal sliding linkage is used to mount and secure the pumps.
Control is achieved via pressure control using a user-friendly control unit, which can optionally be integrated into the building management system via a potential-free contact or can transmit alarm and collective fault messages via a GSM interface.
Variant
Type of system: Single unit
Shut-off valve: yes
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal
General characteristics
Standard: EN 12050-2
Type of wastewater: with sewage
Installation situation: installation in on-site collecting tank
Delivery state: Modular set for assembly on site
System type: Tronic
Tank/drain body
Pressure pipe connection (DN): 50
Pressure pipe connection (OD): 63 mm
Inlet nominal size (DN): 150
Pumping device
Pump: GTF 1400
Number of pumps: 1
Weight, pump: 12 kg
Connection type: coded plug
Protection class: I
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C

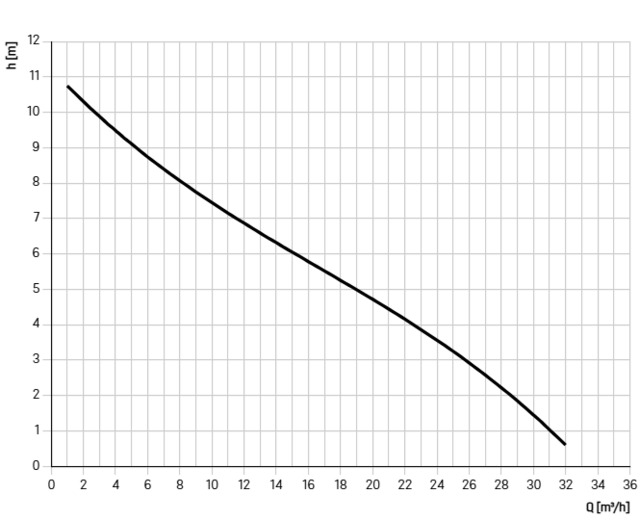

Max. pumping capacity: 31 m³/h
Max. pumping height: 10,5 m
Speed: 2900 U/min
Power P1: 1,5 kW
Power P2: 1,1 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 4G 1.5 mm² mm²
Impeller type: Multi-vane impeller
Length of mains cable for pump: 10 m
Rated current: 6,5 A
Control
Control unit: Comfort
Operating voltage: 230 V
Protection class control unit: IP 54
Type of fuse required (control unit): C 16 A
Self-diagnosis system (SDS): yes
Battery buffering: yes
Multi-line display: yes
Log book function: yes
Potential-free contact: optional
Alarm sensor: optical probe
Level measurement instrument: Submersible pressure switch
Type of level measurement: pneumatic
USB interface: yes
Connection type: coded plug
Length of mains cable for control unit: 1,4 m
GSM interface: yes
