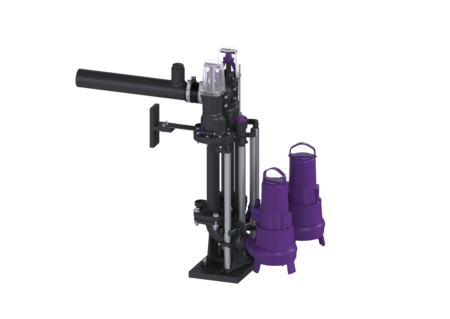

Pump installation kit Retrofit L

Duo, GTK 2600, Level sensor

8744032
8744032
8744032
PDF product data sheet

KESSEL Pump installation kit Retrofit L Duo, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), installation in on-site collecting tank, with 2 submersible GTK 2600 pumps, alarm generator with Level sensor, 400 V, delivery rate 71 m³/h

    Item no. 8744032
    GTIN 4026092103562
    Price group 60

      Pump installation kit Retrofit L Duo, GTK 2600, Level sensor
      The pump installation kit for installation in existing collection tanks for faecal-free wastewater is equipped with two submersible pumps, two backflow preventers and two shut-off valves. The metal sliding rod is used to mount and secure the pumps. The station is optionally controlled by a user-friendly control unit, which can be integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. Variant Type of system: duo pump Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical (special version, on request), horizontal (standard version) General characteristics Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: installation in on-site collecting tank System type: Duo Dimensions Net weight: 137,6 kg Gross weight: 137,6 kg Packaging dimension: length: 1090 mm Packaging dimension: width: 615 mm Packaging dimension: height: 1062 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Pumping device Pump: GTK 2600 Number of pumps: 2 Connection type: coded plug Operating voltage: 400 V Mains frequency: 50 Hz Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 71 m³/h Max. pumping height: 19,6 m Speed: 2900 U/min Power P1: 2,6 kW Power P2: 2,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Type of fuse required (pump): 3 x C 16 A Length of mains cable for pump: 10 m Rated current: 4,5 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): GTK 2600
      • Type of wastewater (abwasserart_de): for wastewater with or without sewage (in installation situations without ATEX requirements)
      • Impeller type (laufrad_typ): Single-vane impeller
