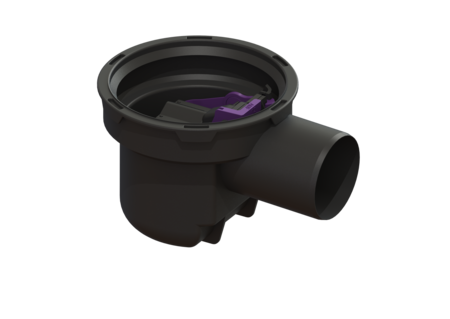

Drain body
for light liq trap, w. backwater valve
The polymer drain body is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure as well as an integrated odour trap and sludge bucket. Heating oil density: 0.865 g/cm3
| Item no. | 52102 |
|---|---|
| GTIN | 4026092085165 |
| Price group | 10 |
Drain body for light liq trap, w. backwater valve
The polymer drain body is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure as well as an integrated odour trap and sludge bucket. Heating oil density: 0.865 g/cm3 Variant Emergency closure: yes Sealing water height: 60 mm Discharge rate (l/s) with 20 mm backwater: 1 General characteristics Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Backwater protection: Type 5 Dimensions Vertical adjustment: 30 - 90 mm Net weight: 2,2 kg Gross weight: 2,2 kg Installation depth: 216 - 276 mm Vertical adjustment: vertically adjustable upper section Width: 243 mm Height: 190 mm Length: 320 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Packaging dimension: length: 380 mm Tank/drain body Material of drain body: Polymer Coverage features Upper section material: Polymer Odour trap: included
| Title | Item no. | ||
|---|---|---|---|
 | Upper section, stainl. steel grid/rim | 48954 | Show |
 | Upper section Black slotted cover, 200 x 200 mm, K 3 | 48964 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, K 3 | 48968 | Show |
 | Variofix upper section System 200, slot grat., 304 SST, L 15 | 48969 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, L 15 | 48978 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm | 57410 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm | 57415 | Show |
 | Upper section, Ecoguss grid | 67985 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Intermediate part with flange, syst. 200 | 27298 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Membrane for System 200, Waterproof concrete | 48982 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| Test Reports and Certificates | |
|---|---|
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Polymer
- CE marking (ce_kennzeichnung):
yes
- Upper section material (material_aufsatzstueck):
Polymer
- (abdeckung_material):
- (belastungsklasse):
- Odour trap (geruchsverschluss): included
