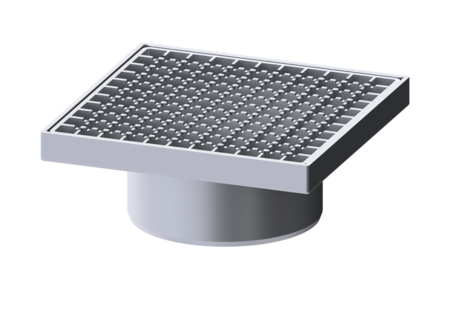

Ferrofix upper section
Sys200, slot grat, 304SST, 300 x 300 mm
Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage.
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies.
| Item no. | 57415 |
|---|---|
| GTIN | 4026092010471 |
| Price group | 70 |

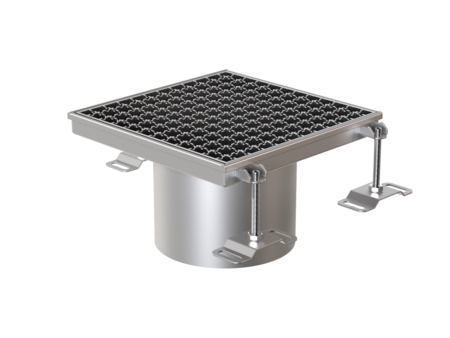

Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm
Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage. Variant System: 200 Note on installation depth: For load class M 125, on-site shimming necessary Dimensions Net weight: 7,97 kg Gross weight: 8,48 kg Width: 300 mm Height: 115 mm Length: 300 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Packaging dimension: length: 360 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 282 mm Height of cover: 28 mm Length of cover: 282 mm Surface: pickled Cover locking: unscrewed Load class: M 125 (EN 1253-1) Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
